- Frame: 10-in. by 5.25-in. steel I-beam frame
- 6.54-cu.-yd. main aggregate bin with adjustable gate for regulating material flow to the main conveyor
- Pugmill feed conveyor 24-in.-wide main conveyor powered by a 7.5-hp electric motor with anti-corrosion protection
- Pugmill with reversible, abrasive-resistant liner plates on paddles, powered by a 20-hp electric motor with anti-corrosion protection; 80-TPH production capacity
- 1.5-in., 160 gpm centrifugal water pump, flow meter and spray bars inside pugmill mixing chamber; powered by a 3-hp electric motor with anti-corrosion protection
- Control panel contains electrical system shut off switch, digital monitor with all system readings,and potentiometers for each component required

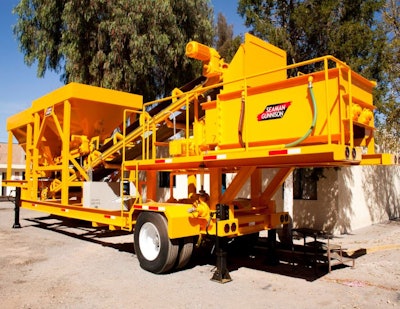

Fill out the form below to request more information about PM80-SG Portable Pugmill Plant - 80TPH
