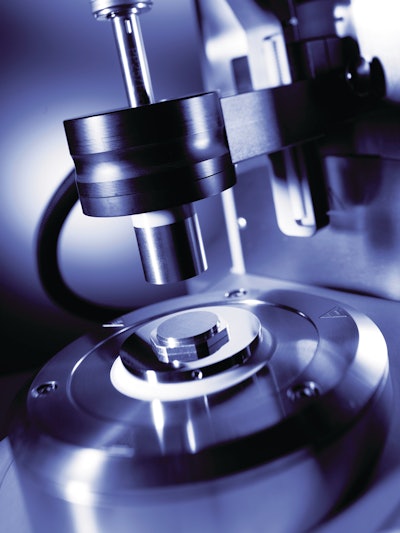

The SmartPave is a dynamic shear rheometer (DSR) based on the latest MCR rheometer technology with the well-established EC motor system.
- For dry sample heating and step-by-step instructions for measuring procedures according to AASHTO T315, AASHTO T350 (TP70), AASHTO TP101, ASTM D7175, ASTM D7405 and DIN EN 14770
- For measurement of ground tire rubber (GTR) modified asphalt binder as well as for viscosity measurements according to AASHTO T316, ASTM D4402 and DIN EN 13302, a unique Peltier temperature device for concentric cylinder geometries is available
- Fully automated temperature calibration
- Toolmaster patented system for automatic recognition of measuring systems and accessories
- QuickConnect coupling: Easy, one-hand measuring system connection
- Large working space for convenient sample filling, trimming, and cleaning
- Ethernet connection for remote control of the instrument through the company network
- Any type or combination of rheological tests, both in rotational and oscillatory mode, are possible
Fill out the form below to request more information about SmartPave Asphalt Rheometer
