How to Choose the Right Antenna for Ground Penetrating Radar Jobs

When assessing which antenna to choose for a job it is essential to consider the surface cover and soil present as well as the depth you want to scan

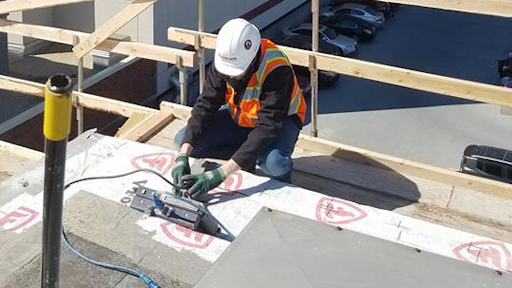

Choosing the right antenna for your GPR depends on multiple factors including how deep you want to scan, what you are scanning through and customer expectations.
Choosing the right antenna for your GPR depends on multiple factors including how deep you want to scan, what you are scanning through and customer expectations.
Echo GPR

By Jami Harmon, GSSI

Antennas used with ground penetrating radar (GPR) come in different shapes and sizes. The largest antennas typically radiate the lower frequencies necessary to detect the deepest targets. The smallest antennas radiate the highest frequencies that provide the greatest resolution required to detect small, shallow targets. The “best” antenna for a job is the one with the highest frequency that can still detect objects at the desired depth. Mark DeSchepper, President of Kansas-based Echo GPR Services, has more than 12 years of GPR experience and offers some great examples of how to select the right antenna.

Selecting the right antenna

Selecting the right antenna frequency for a GPR job depends on the size and depth of the target. A lower frequency antenna will provide deeper penetration, but the trade off is that the targets must be larger to be detected.

When looking only one to two feet beneath the surface, for example, when imaging in concrete and looking for very small reinforcing and conduits, use a higher frequency GPR antenna, which offers greater detail. For deeper targets or characteristics, the primary and secondary choices are lower frequency antennas. These allow users to see deeper, but one trades off the ability to resolve smaller or very shallow features and targets.

When scanning utilities, the mid-range antennas provide sufficient resolution to find four- to five-inch pipes at four to five feet deep. The general rule of thumb for utility locating is a 1:1 ratio: for every foot down, one inch in diameter is required to return a strong hyperbolic reflection of a potential target. To scan deeper, for example, mapping geological features 20 to 50 feet deep, low frequency antennas will work because very high resolution is not required.

Importance of selecting the right antenna for the desired depth

Selecting the right antenna for the depth of the particular target is critical. If the antenna frequency is too high, the maximum detection depth may be less than needed to find the desired target. The GPR image quality deteriorates with increasing depth to the point where no reflections can be observed. Conversely, if the antenna frequency is too low, fine details are lost. For example, if using the wrong antenna, individual closely-spaced shallow targets cannot be identified because they may appear as a continuous reflection band.

When assessing which antenna to choose for a job it is essential to consider the surface cover and soil present. One important parameter is the material’s conductivity how well does the soil, asphalt or concrete let an electrical current pass through it? The higher the material’s conductivity, the more the radar waves are absorbed into the material as they are moving through it. In other words, the radar waves’ depth penetration progressively decreases as the conductivity of a material increases. For example, asphalt typically has low conductivity, while concrete has varying degrees of conductivity depending on its curing state, wetness and composition. Soil conductivity varies wildly, from radar-friendly sandy soils to radar-foe clay soils.

For this reason, antenna depth specifications are based on the material and application. Antenna specifications for soil-based applications use soil information, while concrete-based applications use typical concrete parameters.

Other factors to consider when assessing depth penetration include the presence of metal reinforcing between the surface and the target. The tighter the rebar or mesh spacing (for example, in a concrete slab), the more difficult it is to achieve the desired depth penetration.

Echo GPR scanned the area and identified 16 pieces of rebar reinforcement.Echo GPR scanned the area and identified 16 pieces of rebar reinforcement.Echo GPR

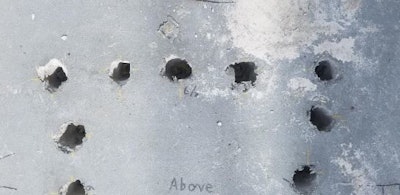

Successful drill locations as identified in GPR scan.Successful drill locations as identified in GPR scan.Echo GPR

A closer look at antenna bandwidth ranges

GPR antennas send out a range of radio frequencies and generally have an ideal frequency at which they transmit most efficiently. This value is based on the size of the antenna’s transmitter and receiver elements and is often referred to as the antenna’s “center-frequency.” Another often-used term is the antenna’s bandwidth, the range of frequencies that the antenna transmits at power levels that are within half the power level radiated at the antenna’s center-frequency. A typical GPR antenna’s bandwidth is about the same as its center frequency.

For example, a 400 megahertz (MHz) GPR antenna will have a center-frequency of 400 MHz and a range of frequencies radiated at power levels within half the power level at 400 MHz from 200 MHz to 600 MHz. The bandwidth would therefore be 600 – 200 = 400 MHz.  Likewise, a 900 MHz GPR antenna could have a bandwidth that extends from possibly 450 MHz to 1350 MHz.

This bandwidth range means that small changes in center-frequency provide minimal enhancement in penetration depth. That is why GPR antennas are not typically available in small frequency increments. More commonly, antennas are available in center-frequencies that are doubled, such as 2000 MHz, 400 MHz, 800 MHz, 1.6 MHz and 2.6 MHz.

Antenna selection based on a solid understanding of customer goals

According to DeSchepper, antenna selection should be based on a pre-job conversation that establishes an understanding of the depth of the investigation and what the customer wants to accomplish. Comfort, convenience and safety when working on a ladder or overhead is another consideration.

A local supermarket hired Echo GPR to conduct a GPR scan to avoid losing power to cash registers or cutting refrigeration pipes in a recent renovation project.A local supermarket hired Echo GPR to conduct a GPR scan to avoid losing power to cash registers or cutting refrigeration pipes in a recent renovation project.Echo GPR

Echo works extensively with electricians and plumbers who are remodeling existing buildings. “We do everything from a local grocery store that wants to install new plumbing in the floor and needs to locate existing utilities and underground conduits all the way up to nuclear power plants,” says DeSchepper. In addition, the Echo GPR team works in commercial remodels of strip malls, office spaces and office retail spaces and has performed GPR scans at all the hospitals in Kansas City. They also work for geotechnical and environmental firms to locate underground storage tanks.

DeSchepper explains that grocery stores cannot afford to accidentally cut power to their cash registers. Also, they may have underground refrigeration pipes that run to their coolers. The last thing they want to do is cut into these refrigeration pipes, which would result in downtime, potential environmental issues and even store evacuation.

Field conditions can make antenna selection more challenging

DeSchepper warns that selecting the correct antenna for achieving the depth penetration required can sometimes be tricky. He explains this happens with more frequency than might be expected mainly because actual conditions in the field turn out to be different than those given to the GPR crew by a contractor.

“Recently, a contractor asked us to scan a 20-foot by 200-foot area because they needed to cut out a hole and install a new piece of equipment. I grabbed the 2600 MHz antenna, my usual go-to for concrete cutting. Now, when I teach GPR for those getting the industry certificate through the Concrete Sawing & Drilling Association (CSDA), the first thing I tell students is that the most important thing when scanning concrete is to find the bottom of the concrete for both slab on grade and suspended slab applications. This lets you know you are seeing what you need to assist the cutting/coring contractor. When I scanned with the 2600 MHz antenna I could not see the bottom of the concrete. This was a definite red flag, since the contractor said the concrete was 8 inches thick and the 2600 MHz was set up to look up to 12 inches deep. I quickly realized this was not the right antenna. I switched out to the 1600 MHz and lo and behold, the concrete they thought was 8 inches thick was actually 18 inches thick!

DeSchepper was able to call the concrete cutting company before they left the shop; they came out with the right saw and right size blade to cut through the concrete.

Antenna selection should be based on a thorough understanding of what the customer wants to accomplish, as well as comfort and convenience when working on a ladder or overhead.
