Placing Concrete October 2009

Products, tools and equipment for placing Concrete

1256222779409 10291643

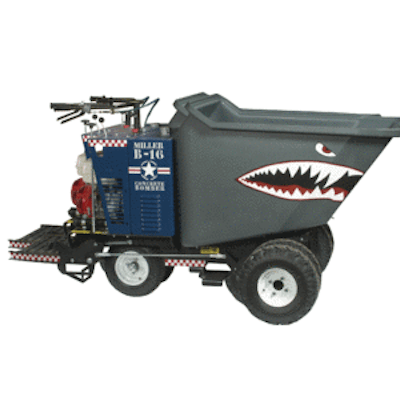

B-16 and B-21 Concrete Bombers


The B-16 and B-21 Concrete Bombers are updated concrete buggies for various construction and concrete applications.

  • Models sport a retrograde, military-inspired theme
  • Shipped standard with an aggressive "shark's teeth" design molded into the bucket
  • Design represents a bold cosmetic makeover of the overbuilt, heavy-duty Scoot Crete buggies


Miller Spreader Company

Canycom Rubber Track Concrete Buggy


The 1,576-lb. Canycom from IHI Compact Excavator Sales is a rubber track concrete buggy featuring a 16-cu.-ft. capacity and a 90° dump angle.

  • Track system enables transport of materials through muddy ground conditions and over rough, uneven terrain or loose sand and gravel
  • Hydrostatic drive system
  • 22-hp Robin gas engine with electric start
  • Travel speed up to 6 mph
  • Measures 35 in. wide and 95 in. long


IHI/Compact Excavator Sales

CB16P Buggy


The CB16P power buggy features the 16-cu.-ft.-capacity Cross Link Polymer Bucket, which is designed to minimize splash, plus offers a high UV protection rating.

  • 13-hp Honda engine
  • Bucket hinge design provides greater reach and allows the bucket to sit lower in the frame for easier loading and a lower center of gravity
  • Extra-capacity 6-gal. fuel tank
  • Riding platform locks in upright position for walk-behind applications
  • 6-in. minimum dump height


Crown Construction Equipment

Curb Roller


  • Meets the needs of small to medium contractors by offering relief from hand forming without the high price of machines
  • Pours up to 30-in. curb and gutter, even next to existing sidewalls
  • The easy-to-use machine offers accurate pouring and hydraulic drive with variable speeds


Curb Roller Manufacturing



The Curbcat concrete slipform curb and gutter attachment from Creative Equipment Design provides automatic control of grade and steering using sensors and stringline.

  • Hydraulic vibrators and cylinders powered by skid-steer hydraulic system
  • Quick, easy hookup and disconnect
  • Molds changeable in minutes
  • Easily transported via pickup or trailer


Creative Equipment Design

EDGE Concrete Placing Bucket


The EDGE Concrete Placing Bucket is designed to carry and place concrete with a skid steer in places concrete trucks cannot go.

  • Available in 1/2- and 3/4-cu.-yd. capacities
  • 30-in. chute extension available
  • Features include squared off corners and a backed-on powder coat finish
  • Hydraulically controlled dispensing door closes with a tight seal for accurate, multiple placements from the same load


CEAttachments Inc.

Groutzilla System


The PTO-driven Groutzilla placement system easily places grout and masonry mortar in blocks, walls, forms and foundations.

  • Handles 20 cu. ft. of material, including most slump
  • Replaceable steel hopper swivels on heavy-duty roller bearings
  • Self-wiping Talet auger system with reinforced, composite polymer flighting that prevents binding due to various aggregate sizes
  • Positive hydraulically controlled shutoff valve
  • Heavy-duty fork pockets


Stone Construction Equip. Inc.

Lil' Bubba Curb Machine


  • Self-propelled concrete curb machine designed to easily create curb-style landscape borders in various commercial and residential applications
  • 4-hp gasoline engine
  • Auger or plunger drive
  • All-steel construction
  • All-terrain tires


The Concrete Edge Company

Post-hole Digger


  • A post-hole digger attachment for the Power Curber 5700-SUPER-B digs pier holes up to 34 in. deep for slipforming concrete foundations for steel cable strung in highway medians.
  • Mounts on left rear of machine and powered with the auger conveyor circuit
  • Auger inside cylinder moves dirt upward into a hinged chute, which dumps it out of the way
  • Stop rod available for consistency of hole depth


Power Curbers Inc.

PS-2700 and PS-3000


Power Pavers offers the PS-2700 and the PS-3000, two belt placer/spreader models to choose from depending on your job size and transport needs. The PS-2700 is for paving depths up to 14-in. thick while the PS-3000 is for paving depths up to 28-in. thick. The PS-2700, with the belt mounted through the tracks and beneath the machine, can be hauled easily on a single lowboy. The PS-3000 has the conveyor belt mounted out in front of the machine. This allows the placement of high volumes of concrete for thick airport and highway paving. Hydraulic loading legs are standard equipment on both models.


Power Pavers Inc.

PumpMaster Model MJ-16


The PumpMaster MJ-16 is a positive displacement piston pump designed for slabjacking/mudjacking, void filling and general pressure grouting applications. Features include an exclusive hydraulic drive train and low maintenance manifold system. It has a 5 cu. ft. material hopper and an 8.5 hp gas engine.


Airplaco Equipment

SP 500 Trailer Pump


  • Suitable for pumping grout, shotcrete and concrete
  • 45-cu.-yd./hour output
  • 72-hp diesel engine
  • Long Rock Valve promotes filling efficiency even with harsh mixes containing up to 1.5-in. aggregate
  • Hydraulic agitator is standard
  • Forward and reverse remote control


Schwing America

Telebelt TB 600


The Telebelt TB 600 truck-mounted telescopic belt conveyor features a rated output of 600 cu. yds. per hour.

  • 24-in.-wide high-capacity main conveyor and feeder belt with 360° continuous rotation
  • Will place all flowable materials and large aggregates up to 6 in. in diameter
  • Four-section telescopic boom with 102-ft. horizontal reach and Modular Boom Control
  • Ergonomic, lightweight proportional radio and cable remote controls


Putzmeister America
