Wirtgen Pavers Key to Construction of Yogyakarta International Airport

Eleven slipform pavers were able to produce concrete surfaces with a high degree of precision without using the fixed steel molds often utilized at airports.

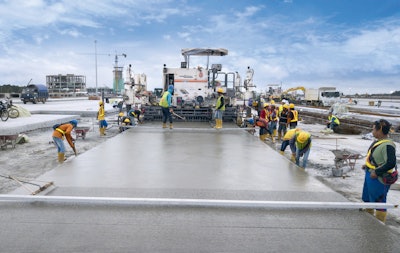

Wirtgen’s high-precision slipform pavers can produce concrete corners with a 90° angle.
Wirtgen’s high-precision slipform pavers can produce concrete corners with a 90° angle.
Wirtgen Group

The first plane to land at the new Yogyakarta International Airport (YIA) on the Indonesian island of Java was an A320 from Jakarta. Eleven slipform pavers from Wirtgen played a key role in that milestone.

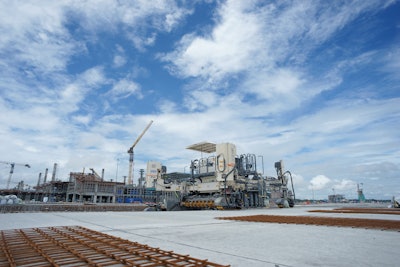

Once the YIA project has been completed, up to 20 million passengers will be able take off and land there each year. With a current terminal area of 130,000 sq. meters, the new airport is set to replace Adisutjipto Airport, which is struggling with capacity issues. Four concrete pavers from Wirtgen were responsible for the high-precision, cost-effective paving of the airport's concrete surfaces.Four concrete pavers from Wirtgen were responsible for the high-precision, cost-effective paving of the airport's concrete surfaces.Wirtgen Group

The tight schedule was a particular challenge of the large-scale project in Yogyakarta. Reliable solutions from one source were required if the concrete slabs were to be completed on time. And this is precisely what the Wirtgen Group sales and service company in Singapore promptly delivered, working in collaboration with the Indonesian Wirtgen Group dealer PT Gaya Makmur Tractors. This included the large fleet of machines required, but also technical support and on-site application consulting.

Exceptional Quality Makes the Concrete Surfaces Stand Out

A team of four SP 64 machines, six SP 500 machines, and one SP 84i machine formed the final line-up for the high-precision, cost-effective paving of the 3,250 meters-long, 45 meters-wide runway, its taxiways, and the apron.

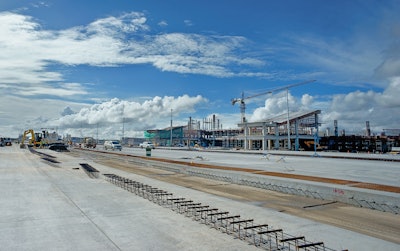

The 50 cm-thick concrete layer was paved across a width of 2 meters, 5 meters or 6 meters, depending on the area involved. During the process, dowels, which were prepositioned on reinforcement cages spaced at transverse intervals of 30 cm, and a wire grid were integrated in the concrete as additional reinforcements. Wirtgen slipform pavers are suited to a wide range of requirements, such as producing concrete surfaces with a high degree of precision without using the fixed steel molds so often utilized at airports.Wirtgen slipform pavers are suited to a wide range of requirements, such as producing concrete surfaces with a high degree of precision without using the fixed steel molds so often utilized at airports.Wirtgen Group

“The quality of the concrete surfaces is excellent,” says Andek Prabowo, CEO of PT PP Presisi Tbk Group of PT PP (Persero) Tbk. The machines also excelled across the board in terms of their performance. “The airport is set to grow by another 65,000 sq. meters during the second phase of construction. The landing runway will also be extended by another 350 meters,” Prabowo explains. When the time comes, the fleet of Wirtgen slipform pavers will be ready for action.
