GOMACO Xtreme GT-3600 to Make First Appearance at World of Concrete

Xtreme package adds G+ radius software with slew drives, smart-sensored hydraulics and intelligence to the machine

Gomaco Xtreme3600
GOMACO Swoosh 54c2cd8385045

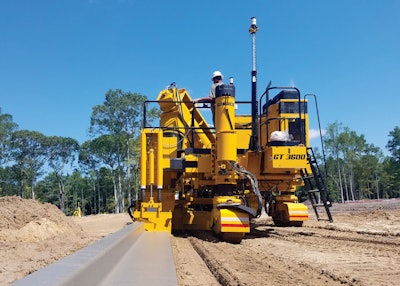

The Xtreme GT-3600 curb and gutter machine is based on the GT-3600, the first three-track machine to slipform a 24-in. radius. Now, with the Xtreme package on board, tight radius paving is even easier and more efficient. The Xtreme package adds G+ radius software with slew drives, smart-sensored hydraulics and intelligence to the machine.

  • Xtreme steering and intelligence added to each track and includes rotary-sensored slew drives, sensored All-Track Steering and All-Track Positioning and smart hydraulic cylinders
  • Tracks can now rotate furtherCg 111821 D 01
  • Smart cylinders allow the G+ control system to know the exact position of the tracks to make steering adjustments as needed
  • Xtreme Radius program allows for tight radii on stringline
  • Individual track speed control provides smooth machine travel around the radius
  • G+ control system easily interfaces with any of the major 3D guidance systems for the same smooth control
  • Smart hydraulic cylinder utilized for intelligent offset when telescoping and side shifting the mold mounting system
  • Trimmerhead and mold have independent vertical adjustments for raising and lowering to work around jobsite challenges
  • Tier 4 engine includes an optimized cooling package with a hydraulic fan controlled by G+
  • Available with GOMACO Remote Diagnostics (GRD) for machine troubleshooting, diagnostic reviews, software updates and more

Brochure: https://bit.ly/2Hbmbj3
