Fab-Form Industries Zont-bracing is the first horizontal bracing system specifically designed for the ICF industry.
The system consists of three elements:

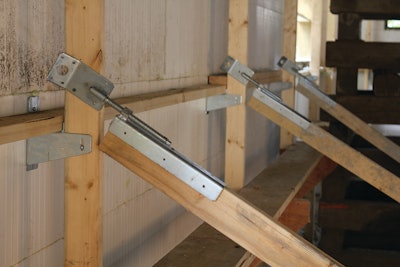

- Zont-brackets screw attached to the ICF block which hold the walers and strongbacks in position
- Site available 2 x 4 walers and strongbacks to flatten the wall horizontally and vertically
- Zuckle-turnbuckles for aligning strongbacks
Advantages
- Only 7% the weight of conventional ICF braces
- Walers flatten the wall horizontally, strongbacks flatten vertically
- Easier support for door and window bucks
- Lightweight product requires minimal recycling
- Continue layers of Zont-walers up the wall, no restriction on height
