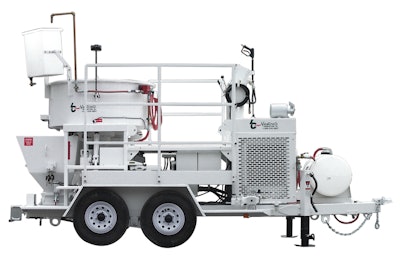

The upgraded MX-10 mixer/pump features a closed-loop hydraulic circuit that delivers greater speed and torque to quickly and effectively mix dense refractory materials in less than two minutes.
- Hopper handles up to 2,500 lbs. of material
- High-speed hydraulic agitator keeps materials blended and in suspension as material flows to the pump
- 3-in. swing tube piston pump operates with up to 2,200 psi for installation of as much as 12 tons of material per hour
- Achieves up to 450 vertical pumping distances when installing refractory materials
- 22-sq.-ft. platform with electrical controls positioned away from the mixer to remain free from debris and water
- Mounted on dual 7,000-lb.-capacity axles with electric braking and lights or on an optional skid-mounted framework
- Available with a 99-hp John Deere 4045T or 102-hp Deutz BF4M 2012 water-cooled diesel engine or electric motors
- Swing-out receiving hopper provides easy access to the lower hopper and swing tube section for cleaning and maintenance
