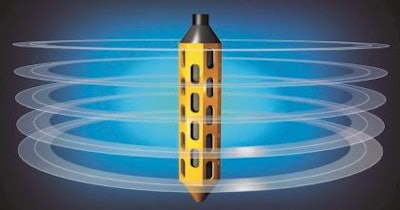

Oztec’s patented RubberHead's® unique design keeps concrete in contact with the entire length of the vibrator head which causes strong shockwaves to be sent off of the entire length of the head creating a larger radius of action, producing denser concrete with fewer voids. RubberHeads® are available with an optional rubber-coated extension piece.

  • Extension piece reduces the chance of the head becoming entangled in the rebar
  • Protect epoxy-coated rebar and delicate form faces
  • Designed to produce better-consolidated concrete
  • Designed to outperform any other type of vibrator...round, square, hi-cycle, etc.
  • Will protect epoxy coated rebar and expensive forms
  • Is outstanding in low slump (to “0” slump) concrete
  • Essential in large pours of very stiff concrete.
  • Makes concrete denser with fewer voids to patch.
  • Vibrates at 12,000 vpm, never drops below 10,500 vpm when lowered deep into low slump concrete.
  • Is an absolute must for architectural concrete where cosmetic surfaces are essential.

All Oztec vibrators meet or exceed ACI specification # 309

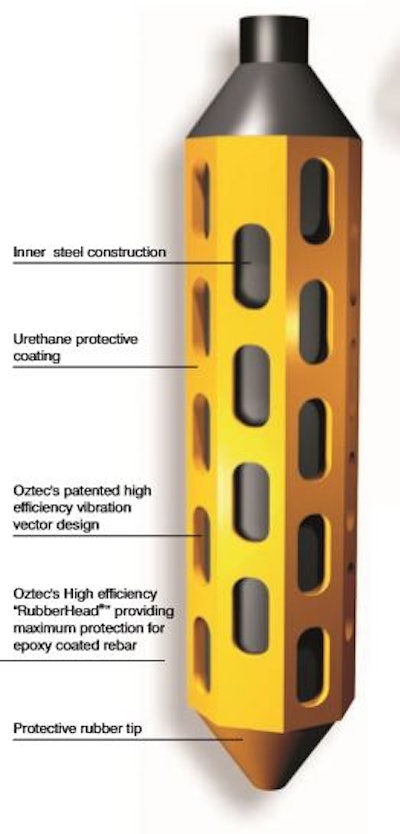

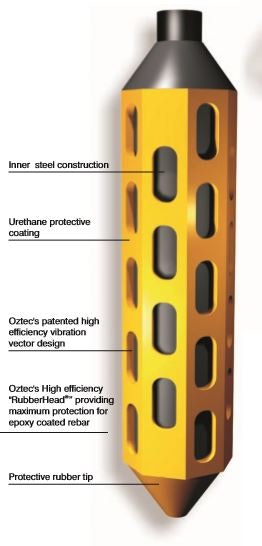

Oztec Rubberhead 2

Epoxy-coated rebar presents a particularly troublesome problem. Steelheads act like an electric hammer, striking any rebar or forms they contact, over 10,000 times per minute, with a force from hundreds to over 2,000 lbs. per blow. Contact with a steel vibrator head of as little as one second can chip enough coating to subject the steel to deep rust. Oztec's patented high-efficiency RubberHead® vibrator head not only meets DOT non-metal head specifications for protecting coated rebar and expensive forms but exhibit some very special and unique properties. The high-efficiency RubberHead® urethane dimpled construction sends strong shock waves off the entire length of the head, with a larger radius of action, producing denser concrete with fewer voids to patch.


  • Available Sizes: 1 1/8 in., 1 1/2 in., 1 7/8 in., 2 1/2 in., 2 3/4 in., and 2 3/4 (short)
  • Weight: 1 3/4 lbs., 4 lbs., 4 3/4 lbs., 8 lbs., 10 lbs., 6 lbs. (short)
  • Vibrations: 12,000 VPM
  • Flexible Shaft Length: 2 to 21 ft.
  • Flexible Shaft Weight: 2 to 21 lbs.
  • Head Diameter: 1 1/8 in. to 2 3/4 in.
