Dynapac Intelligent Compaction System

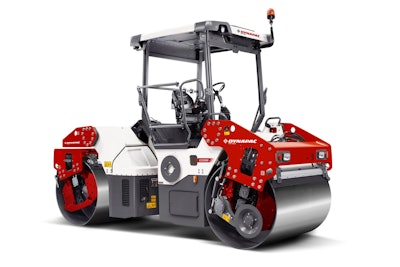

Cc2200 59in Asphalt Roller
Dynapac Fayat Group Red Black Final

The new, easy-to-use intelligent compaction system gives contractors real-time material stiffness readings to ensure superior soil and asphalt compaction.

  • System uses GNSS (such as GPS) to track the number of completed passes and a drum-mounted accelerometer to measure the surface’s relative material stiffness
  • Gives operators immediate materials stiffness results from within the cab to help minimize the number of passes
  • On asphalt, also detects the temperature of asphalt to provide consistent, relative stiffness readings
  • Helps contractors detect any loose materials so they can perform additional passes to reach the right compaction

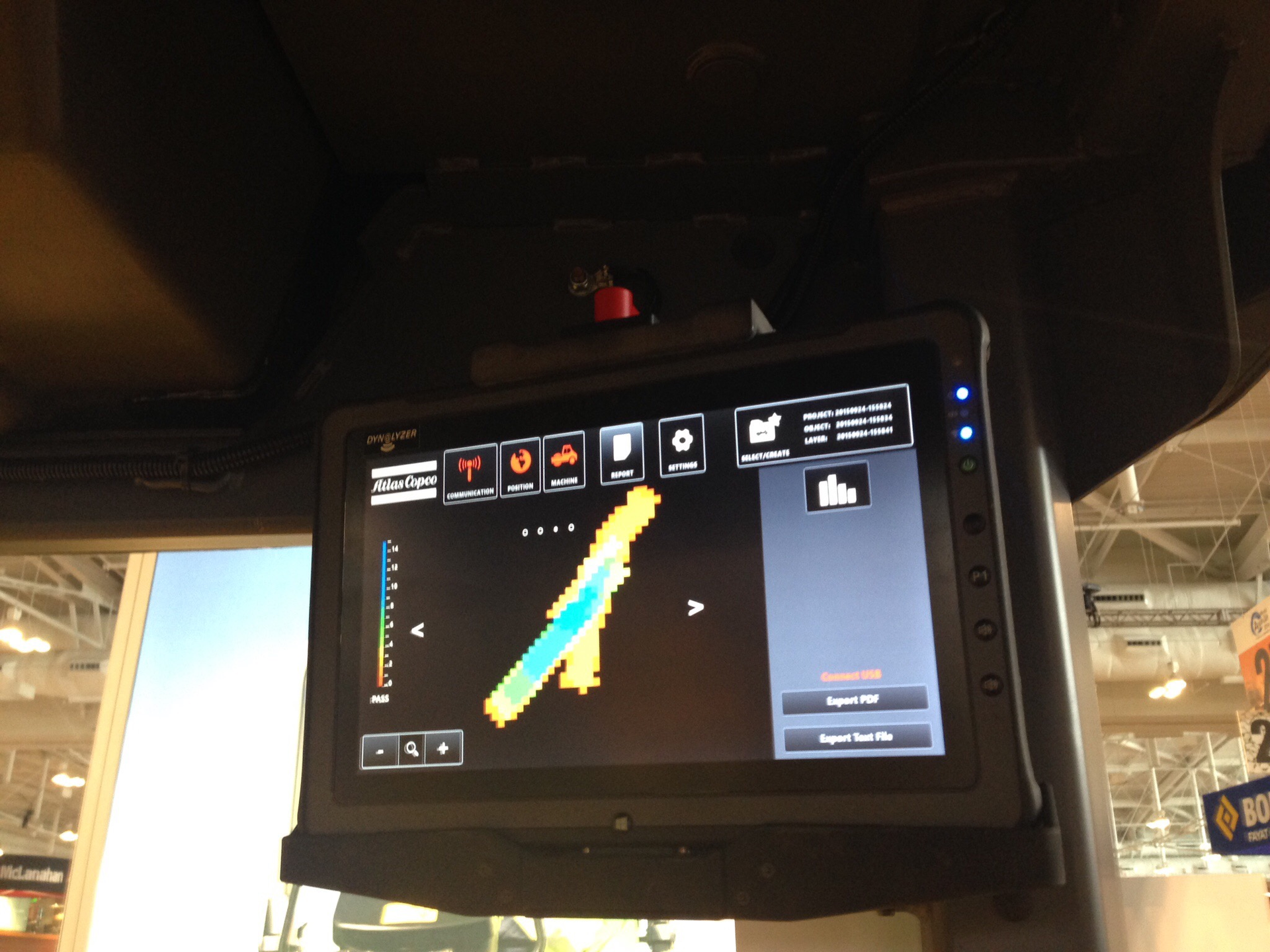

  • Can use the intuitive system on a tablet to set project parameters and view compaction data
  • Once they achieve the optimal level of compaction, the program alerts the operator, so he or she can stop and reduce the risk of over compaction, which can affect the integrity of the material and damage the roller
  • Data storage has the results readily available to print off or display for Federal Highway Department inspections
  • Available on CC2200 through CC6200 asphalt rollers and CA2500 through CA6500 soil rollers
