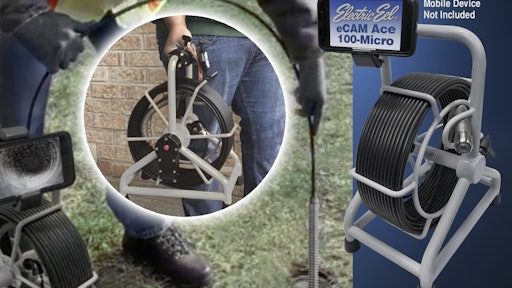

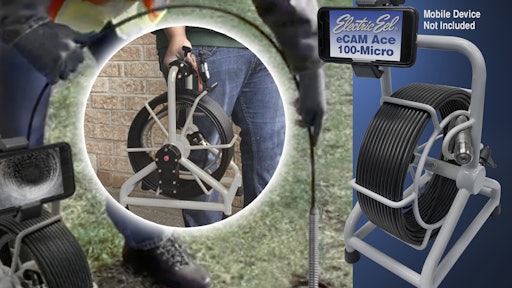

eCAM Ace 100-Micro Compact Pipeline Inspection Camera System

Use Electric Eel's eCAM Ace 100-Micro to stream video from the inspection system to any mobile device.

February 3, 2020

Electric Eel Ecam Ace

Electric Eel 10947772

Electric Eel's eCAM Ace 100-Micro facilitates quick inspections in pipes ranging from 1.5- to 3-in. in diameter and up to 100 ft. in length.

512Hz transmitter and resettable on-screen footage counter
Video streamed directly to any mobile device to use as a monitor
Audio and video can be recorded to the mobile device
Saved files can be transferred via email, text or to the cloud
Push rod size: .271-in. diameter
Push rod length: 100 ft.
Footage counter displays feet and meters (resettable)
Camera head size: 1-in. diameter
Weight: 15 lb.
Dimensions: 10 in. W by 12 in. L by 16 in. H

Fill out the form below to request more information about eCAM Ace 100-Micro Compact Pipeline Inspection Camera System
