Attachment Solutions August 2009

Selection of construction equipment attachments.

1250523682404 10292201

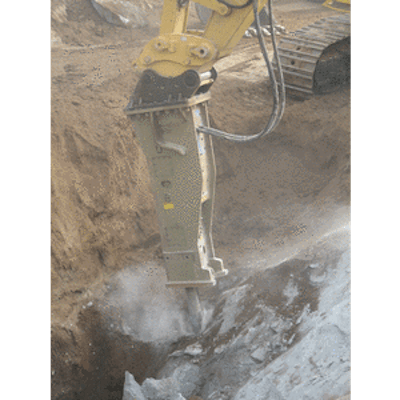

300 Series Breakers



The 300 Series breakers feature a cradle-style bracket, meaning there are no bracket bolts to break.

  • 13 models available from 350- to 10,000-ft.-lb. impact energy ratings
  • Available for skid steers, mini-excavators, backhoes and excavators
  • Nitrogen gas-assisted design
  • Control valves concealed inside of smaller units for added protection
  • Accumulator located on the side of larger models to protect hydraulic system
  • Replaceable tool bushing



UB Equipment Corp.

5-ton PowerGrip Bucket



The PowerGrip multi-purpose bucket is available in a 24-in. width and weighing approximately 525 lbs., suited for excavators up to 11,200 lbs.

  • Can be used as general-purpose excavating bucket, a trenching, grading or clamshell bucket and as a grapple or hydraulic thumb
  • Can be operated using the excavator's existing auxiliary hydraulic circuit
  • Features standard OEM lugging, an enclosed rotary actuator hinge design, high-strength, abrasion-resistant steel construction and quick-coupler compatibility



Helac Corp. Attachments Div.

ACW Series Compaction Wheels



The ACW Series compaction wheels feature oversized compaction feet for optimum performance.

  • Sheepsfoot or padfoot styles available
  • Fully compatible with compact excavators, skid steers and backhoe-loaders
  • Quality sealed bearings and heavy-duty construction for a long and trouble-free service life



Arrowhead Rockdrill Co.

AR Series



The Model 70C requires 8 to 16 gpm at 1,400 to 1,900 psi and is designed to break rock and demolish concrete at a rate of 500 to 950 bpm.

  • Easy start with minimal downpressure allows operation in any position
  • Steady blow energy for maximum breaking power with every blow
  • Slip-fit tool bushings for easy removal
  • Conversion brackets enable switching from loader-backhoes to skid steers in minutes
  • Bolt-on top-mounting bracket allows easy attachment to excavators using quick couplers



Allied Construction Products, LLC

EDGE Pallet Forks



EDGE Pallet Forks come in sizes ranging from 36 in./3,700 lbs. to 72 in./6,000 lbs.

  • Standard-duty model features side steps to make getting in and out of the cab easy
  • Medium-duty model offers a walk-through-style frame
  • Heavy-duty model designed for tough applications and high-horsepower skid steers
  • Rotating, Sliding Tine and Side Shift hydraulic-style pallet forks also available



CEAttachments Inc.

EZ Spot Ur Rotating Attachments



The Ez Spot Ur attachments feature a 127° rotating base, allowing poles, boulders and trees to be set or barrels and containers to be easily dumped with complete control from inside the cab.

  • Over 13 interchangeable tool heads, including a rock and tree handler, pole setter, pot handler and barrel handler
  • Universal Skid Steer Quick'tach or customized adapter plate available



Ez Spot Ur Inc.

Geith Mechanical MX Coupler



The Mechanical MX Coupler is designed to fit mini-excavators from 4,000 to 12,000 lbs. with pin diameters from 30 to 45mm.

  • Easy three-step operation
  • Integrated safety pin serves as a secondary locking mechanism that cannot be lost or thrown away
  • Custom OEM pin grab mechanism design fits attachments designed for the carrier model
  • Allows bucket to be reversed and used in a shovel position
  • Maintains a narrow throat height to maximize digging force



DII Attachments

Grade Blade Attachments



Blades come in six sizes to fit any brand of backhoe-loader or mini-excavator and four sizes for 9-ton excavators and up.

  • Cover teeth to make a smooth edge bucket
  • Install in less than 60 seconds with no tools
  • Squeegee blades have 30° wings to control dirt, etc., leave no windrows and increase bucket capacity 25%



Hall's Grade Blade

Hydraulic Rotary Cutters



Hydraulic rotary cutters are available in six sizes for mounting on excavators ranging from 2 to 55 tons.

  • Cutting head diameters from 12.7 to 28.2 in. with widths from 22 to 49.4 in.
  • Gear reduction multiplies torque, providing pick forces ranging from 4,294 to 23,605 lbs.
  • Excavation, demolition and scaling cutter drums available
  • Provide precise cutting, low operating noise and low vibrations
  • Cut material may be reused as fill



Alpine Sales & Rental Corp.

Hydraulic Tilting Grading Buckets



Hydraulic Tilting Grading Buckets are available for machines weighing from 7,000 to 100,000 lbs.

  • Offered in a variety of capacities and widths from 36 to 72 in.
  • Tilt 45° side to side
  • Side plates and wear bars built of HardOx steel
  • Available for pin-on or quick-coupler interface
  • Optional bolt-on edges available
  • Common bucket sizes in stock



M.C. Faulkner & Sons, Inc.

Leveling C-Hook Pipe Lifter



The Leveling C-Hook Pipe Lifter helps place and position concrete pipe up to 8 ft. in length in one operation.

  • Leveling bail adjusts quickly and easily for varying pipe lengths and the adjustable bail block makes repetitive lifts easy to handle
  • Stand-up bail makes it easier for the operator to pick up the lifter
  • Features a replaceable polyurethane lifting saddle, positioning handle and target holder
  • Available in standard capacities from 1.5 to 15 tons with custom sizes available



The Caldwell Group Inc.

Multilift



The Multilift moves concrete block by simply using a lifting sling, such as the Kenco RigMAX, attached to any type or model of machine with lifting capabilities.

  • No additional hydraulics needed
  • Actuator allows for hands-free movement of blocks
  • Adjustable grips slide independently and can be configured to grab from the inside out
  • Handles up to 6,000-lb. capacities and will accommodate widths up to 60 in.



Kenco Incorporated

New Generation Orange Peel Grapples



The New Generation orange peel grapples offer an ultra-strong structure with sealed oversized pins and bushings.

  • High-pressure cylinders with extremely durable guarding
  • Mechanical stoppers in both the fully opened and fully closed positions
  • Continuous RT Rotators available with different axial lift capacities and high side-loading capabilities
  • Various sizes with four or five tines or with an integrated magnet
  • Can be installed on carriers such as excavators, knuckleboom loaders and materials-handling machines



Rotobec

Pallet Forks



Danuser pallet forks are available in 3,000-, 4,500-, and 6,000-lb. capacities depending upon tine option.

  • Non-skid step and angled side corners allow for easy and safe access in and out of skid-steer
  • Heavy-duty brick guard and frame robotically welded
  • Powder coat finish
  • Multiple load tie-down locations on frame
  • 10° back angle maximizes pallet fork breakout force



Danuser

Pallet Forks and Frame Attachment



These ITA Class II (other classes are available) skid-steer/compact tractor flat forks can be used to unload trucks on the jobsite.

  • Able to go places traditional forklifts aren't available
  • Features handy side step plates
  • 3,950-lb. estimated lift capacity at 24 in.



CJJ, Inc.

Pipe Grap PG 45



The Pipe Grap 45 is a pipe grappler that can handle oil and gas pipes from 12 to 55 in.

  • Can be used with base machines from 44,000 to 54,000 lbs.
  • Changeable clamps to work with bigger or smaller pipe
  • Adjustable grappling force
  • Manually adjustable height support
  • Polyurethane wear parts in the clamps and height supports
  • 360° hydraulic rotation



ALLU Group

PWCE Extendable Dipper



The Extendable Dipper is designed to increase the reach of full-size and compact excavators, as well as backhoe-loaders.

  • Install easily for more versatility
  • Up to 30% more reach
  • Auxiliary hydraulics available
  • Transports with the machine
  • Able to lift heavy loads



Paul Wever Construction Equipment Co., Inc.

Quick Couplers



Ajusta-Buckets quick couplers include many safety-minded features including lift hooks and safety front hooks.

  • Compatible with standard buckets designed using OEM specifications
  • Allow most buckets to be attached in the reverse position for shovel-style digging
  • "Snap-lock" latching mechanism available in sizes for compact and large excavators and tractor-loader-backhoes
  • Hydraulic-powered latches available for larger class excavators
  • Lighter-duty, lower-cost "Snappy" available for compact excavators and tractor-loader-backhoes



Ajusta-Buckets / York-Seaway

REMU Model L75 Screening Bucket



The REMU Model L75 screening buckets work well in wet conditions and are well suited for use in materials with high clay content.

  • For use on skid-steer loaders and compact excavators with operating weights from 3,000 to 106,000 lbs.
  • Rotating blades move material 2 in. vertically per impact
  • Can separate fine from coarse material without crushing bigger particles into the separated material
  • Particle sizes start at under 5/8 in.
  • Dual shafts increase bearing life



MDS Group

SBC 410 Hydraulic Breaker



The 453-lb. SBC 410 is designed for use on skid steers, backhoe-loaders and excavators in the 4,400- to 12,100-lb. weight class.

  • Delivers an impact rate of up to 1,200 bpm
  • Accepts a 17.2-gpm maximum hydraulic flow at a working pressure of 2,175 psi
  • Solid one-piece body eliminates the need for side bolts
  • Cast-iron body allows all integral parts to be housed in the same casting
  • Long-stroke piston design ensures optimum energy transfer to the tip of the tool



Atlas Copco Construction Equipment LLC

Single Pointed Ripper Bucket



The Single Pointed Ripper bucket allows the excavator operator to rip through rock, coral or frozen ground, pry stumps, or dig V trenches.

  • Saves digging time, backfill time and backfill material
  • Powerful like a single pointed ripper, but allows operator to scoop
  • Supplied with one powerful MTG KingMet tooth
  • Available for any excavator above 6,000 lbs.



Leading Edge Attachments

Skid Steer Pallet Fork



The Skid Steer Pallet Forks fit most skid steers with a two-pin drop-style quick attach.

  • 3-ft. high by 4-ft. wide by 4-ft. long precision-welded frame has cab access steps on both right and left sides
  • Includes a pair of high-quality 4-ft. long by 4-in. wide by 1.5-in. high forks



Werk-Brau Co., Inc.

ST Bucket Thumb



The ST model rigid and hydraulic bucket thumb is available for mini-excavators as small as 2,800 lbs.

  • Features a curved, multi-serrated profile
  • Provides the grasping and handling ability to take on rock wall building, land clearing projects and material removal or placement
  • Configurations available with or without cylinders



Amulet

TMB Series Trommel Buckets



The TMB Series of trommel buckets come in four sizes for excavators weighing from 6 to 40 tons.

  • Typical application includes screening C&D debris out of soil and sand
  • Compact, lightweight and can operate with breaker, shear, or thumb hydraulics
  • In-body control valves allow drum rotation speed to be fine tuned for smooth operation in a variety of applications



Okada America

Trench-Beak



The Trench-Beak is a fork and jaw grapple system designed for removal of narrow concrete slabs in trench work.

  • 95-lb. weight allows mounting on small compact excavators
  • 17-in. jaw opening
  • Lifts and removes concrete strips without requiring a sledge hammer
  • No shoveling and minimal cleanup required



Daniel Mfg

Vacuum Lifters



Vacuworx vacuum lifters can handle material such as coated steel pipe, plastic pipe, concrete pipe, flat steel plate and concrete slabs.

  • Can be attached to a number of carriers, such as excavators, wheel or track-type loaders, cranes, pipelayers and forklifts
  • Models available from 3- up to 20-tonne capacity and more



Vacuworx International
