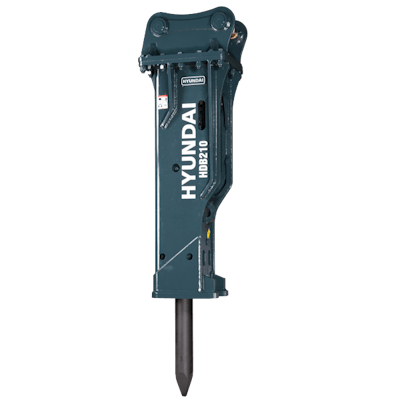

The 14 models (HDB10 to HDB800) in the HDB series breakers are designed to complement Hyundai excavators of all sizes.
- Feature chisel diameters from 1.6 to 7.9 in., operating weights from 271 to 12,401 lbs. and overall lengths ranging from 44.4 to 159.8 in.
- Moil, wedge, blunt or conical chisel options available
- Anti Blank Firing (ABF) system with Auto Control valve standard on the HDB50 to HDB800 models
- Two Stroke Selector System standard on the HDB50 to HDB180 allows operators to change from long to short strokes based on preference and the application
- Energy Regeneration Valve on the HDB600 and HDB800 models increases blow speed without the need for additional flow
- Feature only NOK oil seals for longer seal life
- Additional square buffer provides increased durability of the gas seals, step seals and piston and helps to minimize the piston’s shaking action
- Optional Auto Grease Bracket Mounted system available on the HDB140 to HDB800
Fill out the form below to request more information about Hyundai HDB Series Breakers
