Caterpillar B Series Hammers

Designed for severe applications and matched to hydraulic excavators weighing 18 to 40 metric tons

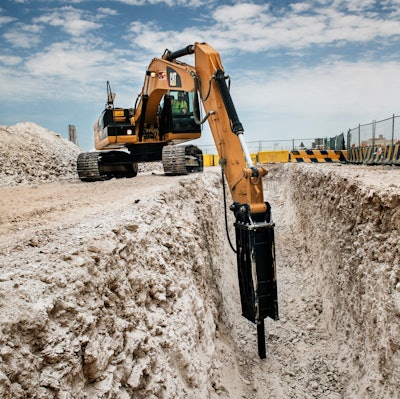

Cat B Series Breakers Cm20160705 27744 52687 591a15b5e2358

The B Series hydraulic hammers (B20, B30, and B35) are designed for high production in a range of severe applications, such as quarry, road construction, demolition, and general construction.

  • Operating weights from 1,846 to 6,660 lbs. and matched to excavators weighing 18 to 40 metric tons
  • 4,000-, 6,000- and 7,500-ft.-lb. frequency class
  • Housings feature bottom reinforcement plates to protect against breakage and wear
  • Field-serviceable high-pressure accumulator
  • Long piston transfers long shock wave into material
  • Outer-type oil control valve allows easy setting and reduced pulsation
  • Side rod (though-bolt) specially heat treated for durability and side-rod nut protected from thread damage
  • Stroke-control valve allows adjusting for primary or secondary breaking chores
  • Full-length side plate allows easy access to service point, with the lower tool-bushing replaceable in the field
  • Easily accessible pressure check point allows quick monitoring of the hammer's operating condition
  • Moil, cone, chisel, long-life chisel and blunt tool types available
