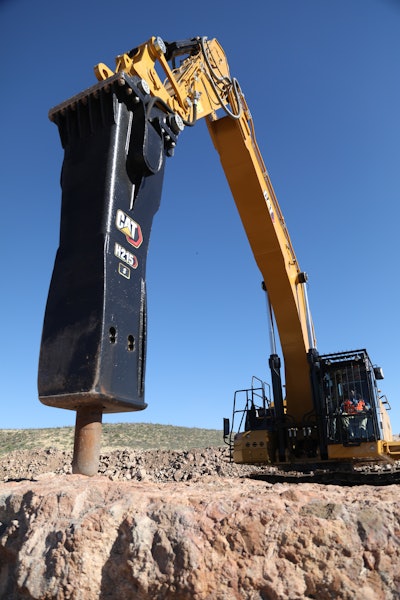

Caterpillar H190 S and H215S Performance Series Hammers

The H190 S and H215S Performance Series Hammers feature a highly efficient operation cycle that results in less waste from internal heat for more power delivered to the tool.

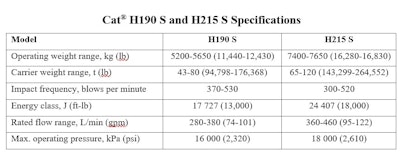

• Fit in the 13,000- and 18,000-ft.-lb. impact energy class and deliver 370 to 530 and 300 to 520 bpm, respectively
• Switchable power mode from high frequency/low power to low frequency/high power to fine tune power to the material being broken
• Buffering material dampens vibration feedback to the carrier
• Can be configured for joystick or pedal control
• H190 S hammer sized for operation on 349 through 374 excavators models, while the larger H215 S is designed for the 374 and 395
• Auto Stop instantly terminates hammering when the tool breaks through material, preventing damage to both the carrier and hammer
• Rotatable bushing can be quickly serviced in the field using hand tools
• Standard on-board autolube system
• Optional wear package protects housing from damage
