Vacuworx Introduces PHD Portable Vacuum System

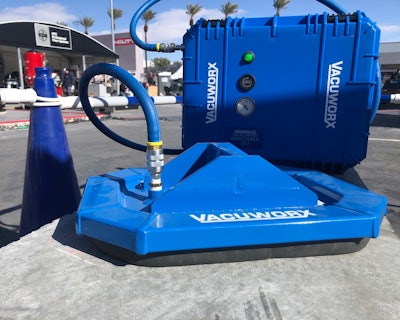

The PHD Portable Vacuum Lifting System weighs just 25 lb., yet it generates enough power to lift up to 2,500 lbs.

Vacuworx introduces its PHD Portable Vacuum System.
Vacuworx introduces its PHD Portable Vacuum System.
Vacuworx
Vacuworx company logo 54d157dae6cee

With smart features like a remote control, lithium battery and dual pump design, the Vacuworx PHD is ready to prove how it can help contractors work faster, safer and smarter. The PHD is equipped with a 12V 30 amp/hour rechargeable LFP (Lithium Iron Phosphate) battery which is designed to provide longer run time and overall longer battery life. The lithium battery is significantly lighter than traditional dry cell batteries, so you  don’t have extra weight to carry around. The battery charger is fast and efficient—simply plug the system in at night and be ready for another full day’s work in the morning.

The PHD features two dual-stage vacuum pumps to build vacuum faster. The system is engineered to draw less power from the battery, while providing a deeper vacuum than single stage pumps. In addition, the PHD releases vacuum more efficiently to increase productivity. The PHD is designed to absorb vibration from the pump for quiet operation. An inline filter protects the system from dust and debris; the filter element is easy to replace when it becomes clogged or dirty, which prevents damage to the system. Hoses have quick connections to both the unit and the pads, and the PHD is equipped with visible and audible alarms for safety.

The PHD Portable Vacuum Lifting System weighs just 25 lb., yet it generates enough power to lift up to 2,500 lbs.

Remote Control

Our customers asked and we listened. One of the most common requests we received from the popular PS 1 Portable Vacuum Lifting System was to incorporate a remote control so that the operator doesn’t have to be right next to the unit to lift and release. In addition, the remote allows the PHD to be used in more applications and on more host machines.

Lithium Battery

The PHD is equipped with a 12V 30 amp/hour rechargeable LFP (Lithium Iron Phosphate) battery which is designed to provide longer run time and overall longer battery life. The lithium battery is significantly lighter than traditional lead acid batteries, so you don’t have extra weight to carry around.

Twin Pump Design

The PHD features two dual-stage vacuum pumps to build vacuum faster. The system is engineered to draw less power from the battery, while providing a stronger vacuum than single stage pumps. In addition, the PHD releases vacuum more efficiently to increase productivity.

Additional Features

The PHD is designed to absorb vibration from the pump for quiet operation. An inline filter protects the system from dust and debris; the filter element is easy to replace when it becomes clogged or dirty, which prevents damage to the system. Hoses have quick connections to both the unit and the pads, and the PHD is equipped with visible and audible alarms for safety.

Mounting Options

Vacuworx offers mounting assemblies to facilitate the use of the PHD on mini skid steers, mini excavators, forklifts, small cranes and demolition robots.
