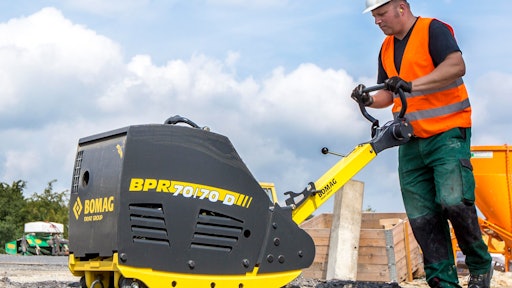

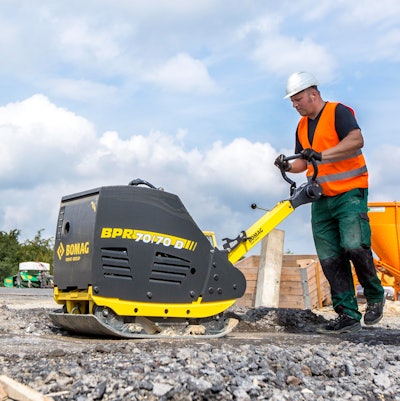

BOMAG BPR 70/70 D Reversible Plate Compactor

The BOMAG BPR 70/70 D reversible plate compactor features a specially designed comfort handle that reduces vibration feedback to the operator’s hands, reducing fatigue.

• Rubber vibration buffers connecting the steering rod to both the handle and the baseplate drop hand-arm-vibration values to 8.2 ft/s² (2.5 m/s²)
• Longer steering rod design requires less effort to maneuver the compactor during operation
• Vibration and throttle controls conveniently located on the steering rod\
• Intuitive control concept delivers quick reversal times for increased productivity
• 1,279-lb (580-kg) operating weight and 15,737-lb (70-kN) centrifugal force
• Standard working width of 27.6 in (700 mm) allows the reversible plate to compact large areas quickly at speeds reaching 91.9 fpm (28 mpm)
• Available bolt-on extensions increase compaction area to 33.5 in (850 mm), giving contractors the flexibility to compact at widths ranging from 21.7 to 33.5 in (550 to 860 mm)
• Can be equipped with the ECONOMIZER compaction measurement system
