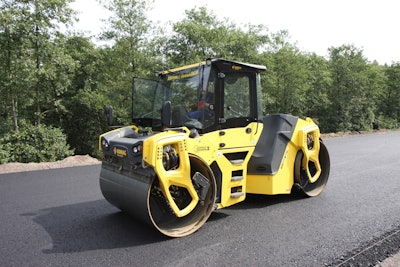

The highway class BOMAG BW206AD-5 tandem vibratory roller boasts a larger, 55.1-in (1,400-mm) drum diameter than previous 84.1-in (2,135-mm) drum models to deliver a smoother finish and improve mat quality. Its large drum diameter puts more impact surface area in contact with the asphalt to help prevent mat pushing and shoving and eliminate the potential for bow waves in front of the drum, even when working at higher speeds on tender mats.
-
Now equipped with a new standard rollover protective structure (ROPS) for contractors in North America
-
Low frequency and amplitude of 3,000 vpm (50 Hz) and 0.031 in. respectively deliver maximum compaction output of 39,116 lb.
-
The rollers high 4,200 vpm (70 Hz) frequency delivers more drum impacts per inch when rolling at higher speeds than the previous model to improve surface smoothness
-
Operating Weight: 30,643 lb
-
Compaction Width: 84.1 in
-
140-hp Tier 4 Final Engine
- 66% higher curb clearance ,increasing flexibility when compacting around obstructions
