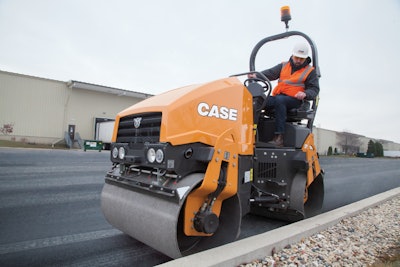

New Product: Case DV Series Small Frame Vibratory Rollers

The DV23D and DV26D double drum rollers and DV23CD and DV26CD combination vibratory rollers are designed with a high curb clearance, no overhangs and a narrow drum width of 37 in.

January 28, 2019
Case Construction Equipment - CNH
531883 5c5b2b21b4284
Caseconstructionequipment 10072354

The DV23D and DV26D double drum rollers and DV23CD and DV26CD combination vibratory rollers are designed with a high curb clearance, no overhangs and a narrow drum width of 37 in.

  • 33.5-hp Tier 4 Final engine delivers high centrifugal forces and frequencies at lower rpms
  • 4,600- to 5,490-lb. operating weights
  • Selectable dual frequencies of 3,480/3,960 vpm
  • Choice of automatic or manual vibration engagement
  • Offset tapered drums reduce asphalt tearing during operation around curves
  • Standard 50-gal. water tank with pressurized water system
  • Compatible with the ACE Force Intelligent compaction system
  • Feature an iso-mounted operator platform with lateral-sliding seat for visibility to the drum edges on both sides
  • All fluid ports, drains and service checkpoints grouped on one side for simplified maintenance
