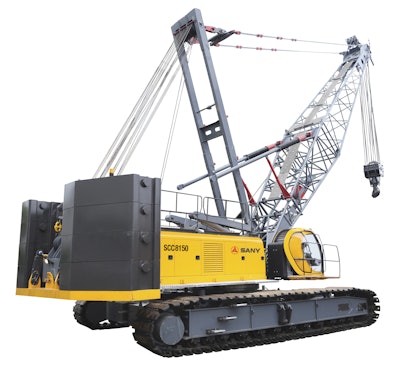

SCC8150 Crawler Crane

With a rated lift capacity of 165 U.S. tons, the new SCC8150 crawler crane fits into the Sany America crawler crane lineup midway between 110-ton SCC8100 and 220-ton SCC8200

Sany SCC8150 HR 54dd32875d7d4

The SCC8150 crawler crane features independently driven crawler assemblies that enable forward and reverse travel, pivot steering and counter rotation.

  • Maximum rated lift capacity of 165 U.S. tons at a radius of 16.1 ft.
  • Rated line pull of the main winch is 29,542 lbs. (13 400 kg)
  • Maximum line speed of 580 fpm (177 m)
  • Can be configured with a main boom that reaches up to 269 ft. (82 m) or a fixed jib up to 102 ft. (31 m) long
  • 340-hp Cummins Tier 4 Interim-certified engine (standard) and Rexroth hydraulic system
  • Hydraulically driven swing system provides 360° rotation
  • Porsche-designed UltraCab 2 provides enhanced ergonomics, large windows, heat and air conditioning and well-placed function screens and video monitors
  • Independently driven crawler assemblies enable forward and reverse travel, pivot steering and counter rotation
