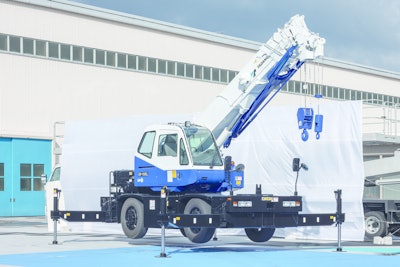

The 15-ton-capacity GR-150XL rough terrain crane reaches 105-ft. tip heights with a six-section, power telescoping boom that extends from 17.4 ft. to 78 ft. and an 18-ft. two-staged off-settable jib (an 11.8-ft. jib is also available). Both crane and drive operations can be performed from the cab, mounted on a rotating superstructure. Tadano says its gross vehicle weight of 30,780 lbs. is half that of standard cab-down cranes.
- 6-ft. 7-in width
- 24-ft. 9-in. total length (boom in transport position)
- Tadano Load Moment Indicator (AML-C) includes control lever lockout function with audible and visual pre-warning; boom position and outrigger status indicator; ratio of actual load moment to rated load moment; automatic speed reduction and soft stop on boom elevation and swing and an external warning lamp
- Powered by the Mitsubishi 4M50-TLA3B diesel engine?
- Hydraulic power steering with two-wheel front, two-wheel rear, four-wheel coordinated and four-wheel crab steering modes
Brochure: Tadano GR-150XL-2 Rough Terrain Crane
