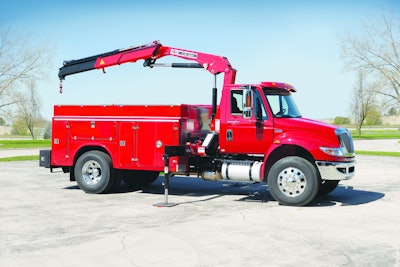

The 9/65, 10/72, 11/78 and 12/86 mid-range articulating cranes have ratings ranging from 65,100 (9 tm) to 86,075 ft.-lbs. (11.9 tm) and maximum lift capacities from 8,380 to 10,230 lbs.
- Feature SL (single link) or DL (dual link) options and 15° "overbending"
- Ultra-high tensile steel provides lower weight, high lift capacity at long reaches and increased payload capabilities
- Can be fitted with up to five hydraulic extensions for application-specific reach
- Single-power plus link-arm system provides high lifting capacity when the boom system is fully extended and greater strength, regular speed and flexibility in the outer boom combined with high speed in the main boom’s extreme positions at the column
- Dual-power plus link-arm system offers the best lifting capacities under all conditions, provides precise and regular movements in the entire working area and is well-suited for long reaches and lifting in high positions with demanding equipment (such as fly-jib and winch)
- Standard RCL (rated capacity limiter) 5300 monitors crane load moment, operation and function
- Radio remote control equipped with an information center that controls stabilizer functions and feedback of loader operation conditions
