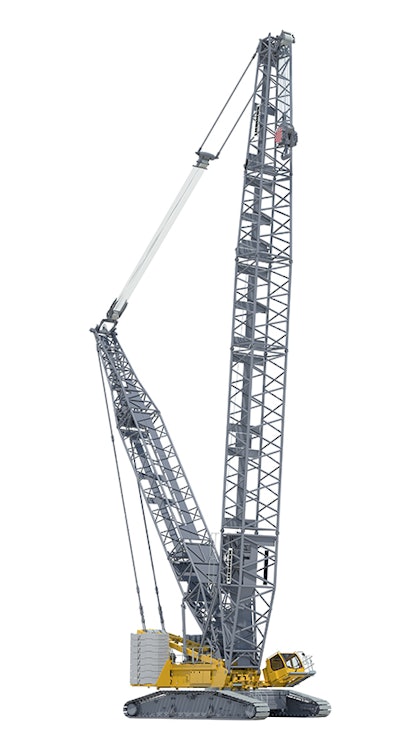

Liebherr LR 1500 Crawler Crane

The LR 1500 crawler crane delivers the maximum load capacity of a 500-tonne model throughout its complete operating range with the dimensions and weight of a 400-tonne crane.

• Removable A-frame allows for a maximum transport weight of 45 tonnes
• 469-hp (350 kW) six-cylinder inline engine meets Tier 4 Final emissions regulations
• Powerful main hoist gear provides a line pull of 40,466 lbf. (180 kN) and can handle all hoists up to the maximum load capacity
• 276-ft. (84 m) luffing jib can be installed on a main boom up to 276 ft. in length
• 250-tonne jib head on the luffing jib is also used for SL main boom operation
• Lighter 400-tonne head available as standard for the S main boom for heavyweight jobs, with an optional 500-tonne head available
• Derrick system also designed for maximum performance with compact dimensions
• Lattice boom system designed to be simple with reduced number of parts and component diversity
