Compact Utility Loaders - Rental March 2009

Equipment Rental - Compact Utility Loaders

1236631154697 10302343

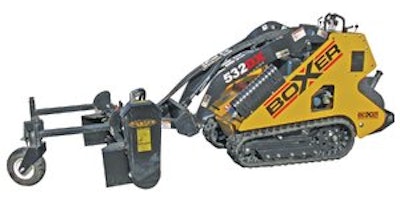

532DX Diesel Mini-skid


The joystick-controlled 532DX has an integrated track system that retracts to a 35-in. width to maneuver through tight areas, then extends to its full 43.5-in. width for increased stability while in operation.

  • 1,050-lb. operating capacity
  • 32.8-hp Kubota D1105-T diesel engine
  • Two-pump, 3,000-psi hydraulic operating system develops 14.5 gpm of hydraulic flow to run the propulsion and auxiliary systems
  • Can handle full-size attachments plus more than 50 universal compact utility quick attachments

    Compact Powers newest model to its Boxer lineup is the 532DX mini-skid. The track-driven diesel unit is ideal for construction, rental, and landscaping markets. The 532DX offers an integrated track system that retracts from a fully extended 43.5 in. to a width of 35 in. and is easily controlled by a joystick on the control panel. The 532DX has an operating capacity of 1,050 lbs.; is powered by a 32.8-hp Kubota D1105-T diesel engine; has a two-pump, 3,000 psi hydraulic operating system that develops 14.5 gpm of hydraulic flow; and is built to handle over 50 universal compact utility quick attachments.


Compact Power Inc.

B-Series Mini Track Loaders


The B-Series MT52 and MT55 mini track loaders feature improved operator safety, comfort and machine durability, plus Tier IV engines meeting the latest emission requirements.

  • 520- and 550-lb. rated operating capacities
  • 35.6- (MT52) and 41.4-in. (MT55) widths and 72.4-in. length without attachments
  • 71.3-in. bucket pin height
  • Features include an auxiliary hydraulic continuous flow shutoff lever, ride-on operator platform and adjustable tilt steering
  • C-Pattern tracks supply optimal traction for digging and other applications and for working in muddy or wet conditions


Bobcat Co. - Doosan Infracore

Dingo TX 427


  • 27-hp Kohler engine
  • Narrow-track model has 535-lb. rated operating capacity, 92-in. length, 33.7-in. width and 5.1 psi of ground pressure
  • Wide-track model features a 535-lb. rated operating capacity, 92-in. length, 41-in. width and 3.5-psi ground pressure
  • Models can pump 19-hp flow to attachments for increased productivity in ground-engaging applications



The TX 427 Dingo compact utility loaders feature a 535-lb. rated operating capacity (35% of tip capacity) and a 27-hp Kohler gasoline engine that delivers added torque for increased pulling and digging force. Weighing 2,006 lbs. with standard bucket, the narrow track version has a 92-in. length with bucket and a 33.7-in. width. The 5.9-in. (wide) tracks generate 5.1 psi of ground pressure. The wide track model weighs 2,186 lbs. with standard bucket, yet generates 3.5-psi ground pressure. It has an overall length of 92 in. and a 41-in. wide track setup. Both models have four independent hydraulic pumps that deliver 16.9 gpm to each track, 11.4 gpm to the auxiliary hydraulics and 6 gpm to the loader arm. Auxiliary hydraulics supply a 19-hp flow to the attachment.



The Toro Company

Finn Eagle Compact Skid Steer


The key benefit of the Eagle is its hydraulic flow rate.

  • Parallel hydraulic system that provides full power simultaneously to all functions
  • Standard oil cooler
  • Universal face plate fits any standard compact attachment
  • 40-plus attachments available


Finn Corporation

S400TX Mini Skid Steer


The S400TX mini skid steer has a 500-lb. rated operating capacity and is powered by a 23-hp gas engine.

  • Two joysticks control transport and boom/bucket motion
  • Joysticks can be operated while holding onto an integrated hand-grip bar


Vermeer Mfg. Co.

SK650 Mini Skid Steer


Equipped with a low-maintenance, 31-hp Kubota turbo diesel engine, the SK650 directs 20 net hp to the attachment for greater performance capability.

  • Larger capacity fuel (8 gal.) and hydraulic tanks mounted on the outside of the frame
  • Foot pedal auxiliary control enables attachments to be driven by foot, freeing hands to control depth and ground speed
  • Quick-disconnect attachment fittings
  • Attachment-level indicator mounted to the attachment lift frame
  • Float section on auxiliary valve enables use of attachments that follow the contour of the ground


Ditch Witch
