Skid-Steers & Mini Loaders

1192032285650 10297651

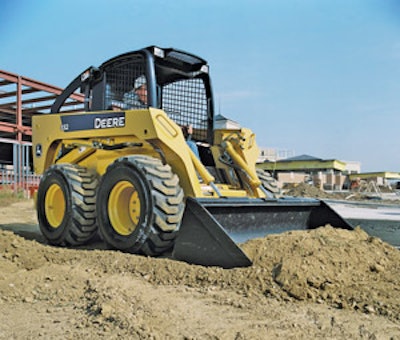

John Deere 300 Series Skid Steers
The 300 Series skid steers offer improved stability through a low center of gravity, long wheelbase, 60/40 weight distribution and larger tires.

  • Vertical-lift boom allows maximum reach at full lift height with a 35° rollback and a 45° dump angle
  • Hydraulic Quik-Tatch
  • 61- to 91-gross-hp John Deere PowerTech 250 Series four- and five-cylinder engines
  • 1,750- to 3,175-lb. rated operating capacities
  • 5,500- to 11,600-lb. bucket breakout force

Doosan Plus Series Skid Steers
The Plus Series includes the 602plus and 802plus, as well as the 702plus and 902plus with vertical lifting boom.

  • 5,578- to 7,077-lb. operating weights with rated operating capacities from 1,450 to 2,250 lbs.
  • Universal attachment system
  • Heavy-duty boom
  • Easy entrance and exit with new boom crossmember
  • Easy to see instrument and integral switch panel
  • Tilting cab

Mustang Joystick Control Option
A dual joystick pilot control is now available for Mustang skid steer models 2076 and 2086.

  • Drive functions controlled via the left joystick and loader lift/tilt functions controlled with the right joystick
  • Low control efforts to reduce operator fatigue
  • Push buttons control two-speed drive and Hydraglide Ride Control and float function
  • Adjustable control towers
  • Thumb switch controls variable-flow auxiliary hydraulic pump

Ditch Witch SK650 Mini Skid Steer
Equipped with a 31-hp Kubota turbo diesel engine, the SK650 directs 20 net hp to the attachment for greater performance capability.

  • Larger capacity fuel (8 gal.) and hydraulic tanks mounted on the outside of the frame
  • Foot pedal auxiliary control enables attachments to be driven by foot, freeing hands to control depth and ground speed
  • Quick-disconnect attachment ¬fittings
  • Attachment-level indicator mounted to the attachment lift frame

Case Pilot Controls
Pilot controls are now standard equipment on the 440CT and 450CT compact track loaders, and optional on the 430, 440, 450 and 465 skid-steer loaders.

  • Can be ordered from the factory with H or ISO patterns
  • Factory-supplied accessory kits also available through Case dealers to ¬permanently change the pattern to H or ISO
  • Provide a shorter throw for greater operator comfort and reduced fatigue

Mapcon Bulldog Skid Loaders
The Bulldog line of skid loaders and excavator/loaders includes 11 models ranging from 1,323- to 2,204-lb. rated capacities.

  • B8250T has a telescopic boom with a 156-in. height to hinge pin
  • B4230CS1 measures 34.7 in. wide and 60 in. tall and is powered by a 50-hp Perkins diesel engine
  • Models combine a rugged design and simplicity with innovation for greater versatility

Komatsu SK1026-5 Skid Steer
The 84-hp SK1026-5 vertical lift skid steer has a 2,650-lb. rated operating load with a 5,300-lb. tipping load.

  • Hydraulic self-leveling bucket with 5,400-lb. breakout force
  • HydrauMind hydraulic system standard
  • Standard two-speed travel with a 6.5-mph work range and 10-mph travel range
  • Automatic Power Control anti-stall hydraulic system
  • 45.7-in. wheelbase

Caterpillar C-Series
The C-Series skid-steer loaders deliver added lift and tilt forces, increased drawbar pull and more power via Cat 3044C DIT 3.3-liter turbocharged engines.

  • 82-hp 262C and 90-net-hp 272C vertical lift models offer 2,700- and 3,250-lb. rated capacities
  • 73-hp 246C and 82-hp 256C radial lift offer 2,150- and 2,350-lb. rated capacities
  • Features include an electro-hydraulic hydrostatic drive system and electronic torque management system
  • Optional Advanced Machine Information and Control System, High Flow XPS, enclosed sealed and pressurized cab, ride control and two-speed travel

Volvo B-Series Skid Steers
The B-Series includes five models ranging from 1,500- to 2,250-lb. operating capacities.

  • 45.3- to 80.5-net-hp engines
  • 114- to 121-in. height to hinge pin
  • Super-comfort, high-back seat
  • Traditional hand and foot controls or pilot-operated joystick controls
  • All-around visibility
  • Wide, tall opening into operator's area for easy entry and exit
  • Hydraulic release button for added operator safety
  • Universal quick-attach

Compact Power Boxer 530X Mini-skid
The Boxer 530X mini-skid is an update of the Boxer TL-224-34.

  • Tip capacity increased to 1,650 lbs.
  • Operating capacity improved to 825 lbs. at 50% of tip load (578 lbs. at 35%)
  • 30-hp Kohler Command Pro air-cooled gas engine
  • Two-pump, 3,000-psi, 14.5-gpm hydraulic system drive
  • 9-in.-wide tracks provide 3.3 psi of ground pressure
  • Integrated track system retracts from 43.5 in. to 35 in. and is controlled via a joystick lever on the control panel

New Holland Deluxe Cab
A deluxe cab design is available for New Holland Super Boom skid-steer loaders (models L150 to L190) and compact track loaders (models C175, C185 and C190).

  • Full-covering, noise-absorbing trim with optional added sound-suppression package for a further 3-dB noise reduction
  • Large convex glass door opens a full 90° for easy entry and exit
  • Removable side windows with detents lock into position
  • Removable, see-through roof panel, backlit sight-at-a-glance instrument panel and vertically positioned operator controls

JCB Upgraded Robots
The upgraded line includes five skid steers with rated capacities from 1,320 to 2,420 lbs. and three compact track loaders rated from 1,804 to 2,244 lbs.

  • Single loader arm with redesigned cab access for added safety
  • Multi-function controls within standardized servo control levers
  • Power Management System
  • 83- to 91-hp JCB Dieselmax engines on the 190/190T and 1110/1110T
  • Redesigned hydraulic system increases breakout force up to 20%

Bobcat S100 Skid-steer Loader
The S100 skid-steer loader features a spacious cab, easy to read instrument panel and a transversely mounted engine in a frame small enough to access and work in some of the tightest jobsites.

  • 4,110-lb. operating weight with a 1,000-lb. rated operating capacity
  • 33.5-hp four-cylinder diesel engine
  • 8-ft. 6-in. lifting height
  • Narrow width of 50 in. with bucket
  • 6.5 mph travel speed
  • 13.1-gpm hydraulic pump capacity
  • Bob-Tach attachment mounting system

Gehl 7810E Skid Loader
The 7810E is powered by a 99-hp Cummins turbocharged diesel engine with 305 ft.-lbs. of torque.

  • 3,850-lb. SAE rated load capacity and 8,340 lbs. of bucket breakout force
  • Auxiliary hydraulic system offers 29-gpm adjustable flow and up to 41 gpm with optional high flow
  • Available two-speed drive with ground speeds up to 12.5 mph
  • 55-in. wheelbase, optional Hydraglide ride control system and special lift arm suspension system supply a smooth ride at faster ground speeds

Toro Dingo TX 525 Wide Track
The Dingo TX 525 Wide Track compact utility loader has a 553-lb. rated operating capacity (35% of tip capacity), and is equipped with a 25-hp Kubota diesel engine.

  • Auxiliary hydraulics deliver 24 hydraulic hp to the attachment
  • Four independent hydraulic pumps supply 16.9 gpm of flow to each track, 13.8 gpm to the auxiliary and 6 gpm to the loader arm
  • Weighs 2,127 lbs. with standard bucket
  • Measures 40.5 in. wide with an overall length of 92 in. with bucket

Finn Eagle Compact Skid Steers
The key benefit of the Eagle is its hydraulic flow rate.

  • Parallel hydraulic system provides full power simultaneously to all functions
  • Standard oil cooler
  • Universal face plate fits any standard compact attachment
  • 40-plus attachments available
