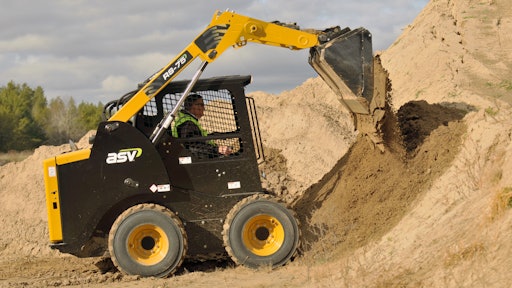

The large-frame radial-lift RS-75 and vertical-lift VS-75 are powered by an industrial 74-hp, naturally aspirated, 2.9-liter displacement diesel engine that generates 192 ft.-lbs. of torque and requires no regeneration, exhaust sensors or diesel exhaust fluid.
- VS-70 offers a 3,500-lb. rated operating capacity (ROC), 7,000-lb. tipping load and 10.8-ft. lift height, while the RS-75 has a 2,600-lb. ROC, 5,200-lb. tipping load and 10.4-ft. lift height
- Dedicated skid-steer frames enable a 10.5-in. ground clearance and a 24-degree departure angle
- Standard hydraulic joystick controls
- Travel speed up to 11 mph when equipped with optional two-speed drive
- Auxiliary hydraulic system with optional 30.9-gpm high-flow pump capacity and 3,335-psi system pressure
- Large line sizes, hydraulic coolers and direct-drive pumps transfer more flow and pressure directly to the attachment and prevent power loss
- Standard reversible wheels narrow the machines to 66 in. for improved mobility in tight spaces
- Swing-out door and cooling system open quickly to expose the engine, filters and other daily
- Optional all-weather, pressurized cab with heat and air conditioning
