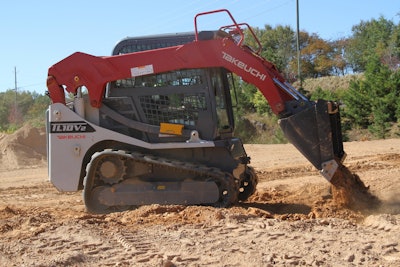

Takeuchi TL10V2 Vertical Lift Track Loader

Vertical lift arrangement delivers a 5% greater operating capacity over the TL10 radial, plus provides increased lift height and greater balance

Takeuchi track loader1 580647d6754e7
Takeuchi Logo New Tag 2017

The 10,130-lb. TL10V2 vertical lift track loader is Tier 4 Final emission compliant and comes standard with the Takeuchi Fleet Management telematics system.

  • Features a tipping load of 7,205 lbs., bucket breakout force of 6,520 lbs. and lift arm breakout force of 5,400 lbs.
  • Maximum hinge pin height of 10 ft. 4.8 in., dump height fully raised of 7 ft. 11.9 in. and dump reach of 3 ft. 1.4 in.
  • Kubota 3.3-liter diesel engine produces 74.3 hp and 195 ft.-lbs. of torque, and features a DOC+DPF diesel exhaust aftertreatment system
  • Standard Active Power Control (APC) automatically maintains engine power and keeps the engine within its optimal performance range
  • Fully redesigned operator’s station includes a 5.7-in. color multi-informational display and precision pilot controls
  • Quiet track design reduces noise and vibration and the tread design provides maximum flotation
  • Central filter locations, easy access battery compartment and high-capacity swing out cooling module improve serviceability

[VIDEO] Takeuchi TL10V2 Compact Track Loader Walkaround
