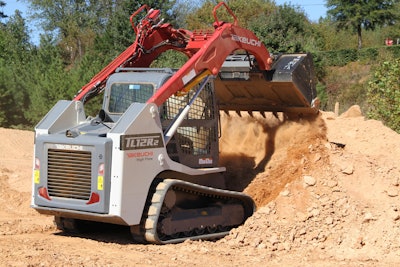

Takeuchi TL12R2 Radial Lift Track Loader

Tier 4 Final model delivers over 6.5% more operating capacity than the TL12 it replaces

Takeuchi track loader2 58064b3b9d591
Takeuchi Logo New Tag 2017

The 12,530-lb. TL12R2 is Tier 4 Final emission compliant and comes standard with the Takeuchi Fleet Management telematics system.

  • Offers a tipping load of 8,629 lbs. and a bucket breakout force of 8,210 lbs.
  • Provides a maximum hinge pin height of 10 ft. 6 in., dump height of 7 ft. 10.5 in, and dump reach of 3 ft. 1.8 in.
  • Kubota 3.8-liter diesel engine produces 111.3 hp and 284 ft.-lbs. of torque and has a DOC+DPF+SCR diesel exhaust aftertreatment system that requires the use of diesel exhaust fluid
  • Redesigned operator station is 3 in. wider than the TL12 it replaces and includes a 5.7-in. color multi-information display
  • Quiet track design reduces noise while operating, and a wide block tread design provides maximum flotation
  • Serviceability improved with central filter locations, an added battery access compartment and swing-out cooling module
