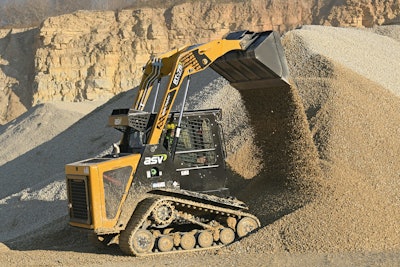

ASV RT-75 Heavy-Duty Compact Track Loader

The radial-lift Posi-Track RT-75 heavy-duty compact track loader is designed for tough applications with maximum durability and serviceability, high-capacity cooling systems and efficient hydraulics

Asv Rt 75 Hd
ASV logo 58239a0e8c9e8

The RT-75 Heavy-Duty compact track loader has a 2,650-lb. rated operating capacity, a tipping load of 7,571 lbs. and a lift height of 126 in..

  • 75-hp Cummins 2.8-liter, turbocharged, Tier 4 Final diesel engine produces 221 ft.-lbs. of torque
  • Direct-drive hydraulic motors transfer torque to the ground
  • Posi-Track rubber track, dual-level suspension undercarriage achieves a ground pressure of only 3.6 psi and a 15-in. ground clearance
  • Includes metal guarding around key areas to protect against brush and debris
  • Hydraulically driven, auto-reversing cooling fan blows debris out of the engine compartment screens
  • Rearward tilting cab provides easy service access
  • Auxiliary hydraulic system provides 35.7 gpm high flow and 3,300 psi
  • Standard joystick controls.
  • Optional all-weather, pressurized cab with heat and air conditioning
  • Full rear brush guard available as a factory-installed option
