Caterpillar D1, D2 and D3 Next Generation Small Dozers

Next Gen models replace the former D3K2, D4K2 and D5K2 for small dozers

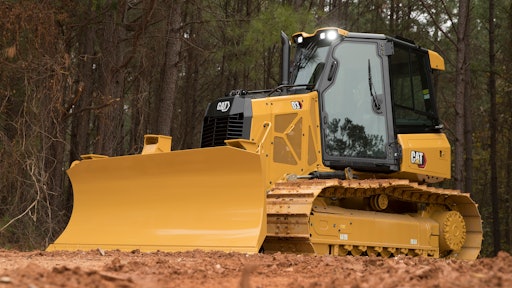

Cat D3 Sttt D Dozer 19 519
Caterpill 10210679

Building on the same base machine platform as the D3K2, D4K2 and D5K2 models they replace, the D1, D2 and D3 Next Generation small dozers feature styling changes, technology enhancements and a new low-emission fuel-efficient engine. The new line made its North American debut at CONEXPO-CON/AGG 2020 with production scheduled to begin in August 2020.

  • Operating weights range from 18,240 to 21,150 lbs. with blade capacities from 1.99 to 3.06 cu. yds.
  • 80- to 104-net-hp C3.6 diesel engines meet Tier 4 Final emissions standards and include Eco Mode
  • Lower sloping hood line improves visibility to the peripheral view and blade cutting edge
  • Larger 10-in. primary display with color touchscreen provides easy access to many of the standard and optional advanced technology features
  • Standard Automatic Traction Control reduces track slip and no longer requires operator interaction as with previous models
  • Slope Indicate provides slope of the chassis in the cross-slope direction
  • Stable Blade allows the operator to finish grade easier, quicker and with less effort
  • Slope Assist available as part of the Cat attachment ready option (ARO) for easy scalability to GRADE with 3D control systems
  • Power Pitch option enables operator to control blade pitch (fore/aft) remotely from the operator’s compartment
  • Standard and LGP (low ground contact pressure) options
  • Optional turbine-type precleaner, automatic reversing fan and hinged radiator grille option

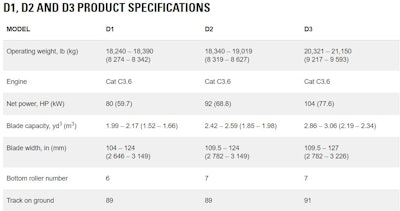

Cat D1 D2 D3 Chart
