High Reach Excavators

69- and 90-ft. booms available on excavators armored to work in demolition environments

EC480DHR
EC480DHR
Volvo Iron Mark

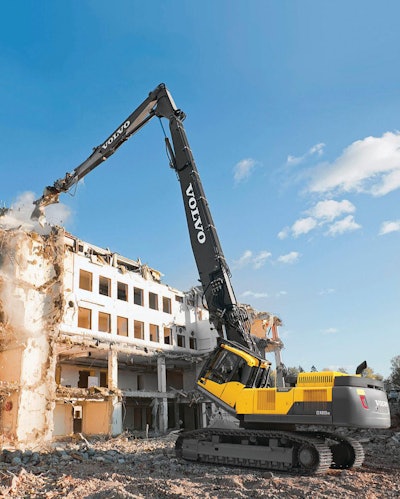

Volvo's high-reach EC380DHR and EC480DHR excavators are designed for demolition jobsites and can be fitted with 69-ft. 2-in. and 89-ft. 9-in. booms, respectively, or standard digging booms.

  • Hydraulically retractable undercarriage with cylindrical design for stability
  • Cab hydraulically tilts up to 30 degrees
  • Volvo D13 Tier 4i engine
  • Full-length track guards repel demolition debris
  • Bolt-on side impact protection system
  • Micro-mesh screens on doors and engine cowl keep out particles
  • Bucket cylinder guard (digging front) and boom cylinder guard (high reach front) protect rods and cylinders
  • Swing ring protection guard protects swing ring bearing seal and grease piping
  • Frame-mounted, falling object guard (FOG); bars on front of the guard are set at angles to increase forward visibility
  • Total moment indicator (TMI) detects if machine is overloaded and sounds alarm and flashes lamp to warn operator
  • Image from front-view camera on high-reach boom displays on 7-in. monitor in cab
