EC700CHR High Reach Excavator

Volvo Ec700chr High Reach Exca 10882368
Volvo Iron Mark

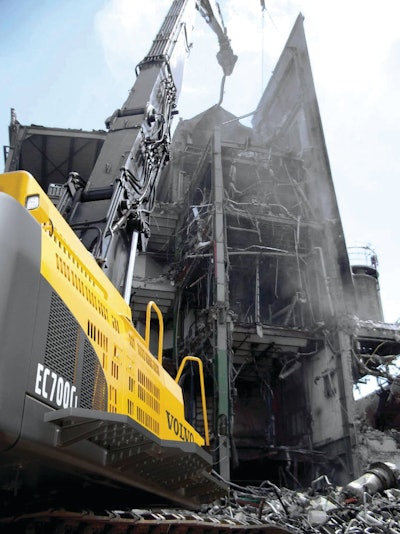

The Volvo high-reach EC700CHR excavator features a design that allows operator to change high-reach boom and arm to standard backhoe or straight boom configuration.

  • Reach: 105 ft.
  • Viscous-mounted and and sound-dampened cabin
  • Hydraulic cabin tilts up to 30 degrees
  • Forward and rear-view cameras
  • Optional reversible fan purges coolers of dust and debris
  • Long undercarraige
  • Extra modular counterweight
  • Boom and arm holding valves
  • Optional slew-reduction control
  • Total Moment Indicator signals warning if machine approaches overload

Standard features:

  • Bucket cylinder guard (digging front) and boom cylinder guard (high reach front) protect rods, cylinders and piping from damage caused by falling objects
  • Swing-ring protection guard defends swing-ring bearing seal and grease piping from damage caused by rebar, timber, concrete or other rubble
  • Frame-mounted falling object guard (FOG) protects operator and cab from wayward debris; bars on the front of the guard are hinged to the front panel and set at angles, increasing forward visibility and making window-cleaning easy
  • Micro-mesh screens on doors and engine cowl keep fine particles out and boost engine performance
  • Double-thickness side doors on each side of the superstructure protect coolers and pumps in the event of a collision and improve machine life
  • Bolt-on side impact protection system defends superstructure against possible damage
  • Enhanced 8mm under-guarding (10 mm under the slew ring) with bolt-head protection
  • Full-length track guards repel demolition debris and prevent rebar or other sharp objects from lodging in the tracks
  • Hydraulically retractable undercarriage with cylindrical design for enhanced stability
