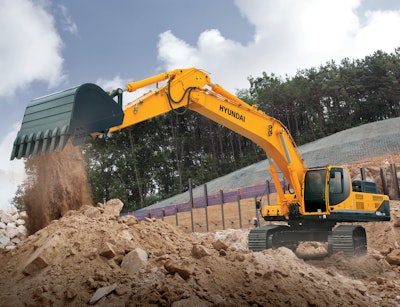

The Tier 4 Interim R480LC-9A and R520LC-9A crawler excavators feature the Hi-mate Remote Management System for access to the machine's vital service and diagnostic information from anywhere with Internet access.

  • Low emission, low noise Cummins QSX11.9 engine with up to 50% torque rise; 352 hp
  • Variable speed fan clutch \Two-stage auto decel system
  • Power, Standard and Economy engine modes
  • Redesigned hydraulic system
  • Slimmer, stronger tubing in enlarged cab; see-through upper skylight and one-piece right-side glass; safety glass windows on all sides of cab
  • Integrated seat and console
  • Adjustable air-suspension standard
  • Color LCD display cluster with digital gauges monitor temperature, fuel levels and other maintenance items


  • Operating weight: 108,420 lbs.
  • Bucket breakout force: 54,950 lbf.
  • Max dig depth: 27 ft. 9 in.
  • Length: 39 ft. 6 in.
  • Width: 11 ft. 7 in.
  • Bucket size: 1.31 to 3.96 cu. yd.

Brochure: Hyundai R480LC-9A Crawler Excavator


  • Operating weight: 114,820 lbs.
  • Bucket breakout force: 62,050 lbf.
  • Max dig depght: 26 ft. 11 in.
  • Length: 39 ft. 7 in.
  • Width: 12 ft. 3 in.
  • Bucket size: 1.31 to 4.19 cu. yd.

Brochure: Hyundai R520LC-9A Crawler Excavator
