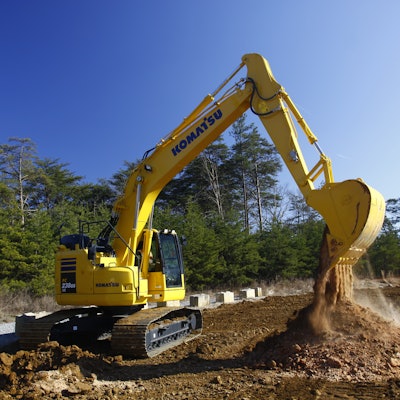

The PC238USLC-11 has a 167-net-hp Komatsu SAA6D107E-3, 6.69L, Tier 4 Final-certified engine and a temperature-controlled viscous fan clutch that results in lower engine parasitic loads.
- 54,230- to 55,440-lb. operating weight
- 21-ft. 9-in. maximum digging depth and 32-ft. 5-in. maximum digging reach
- 4% increase in productivity compared to the previous model
- Compact 14,815-lb. counterweight and rounded cab enable a 5-ft. 11-in. tailswing radius and better lift capacity
- Six working modes with energy-saving guidance incorporated into the monitor panel
- Auto idle engine shutdown
- KOMTRAX and monitor panel deliver vital machine data for easy monitoring and quick operator action
- Operator ID system provides KOMTRAX data to track operators, applications and machine operation for up to 100 individual ID codes
- Available KomVision birds-eye-view camera system combines input from three cameras into a surround-view image of the machine and surroundings
- Upgraded high-resolution, LCD color monitor panel incorporates the standard rearview camera display with gauges
- ROPS-certified cab includes a standard high-back, heated, air-ride seat
- Selectable, auxiliary hydraulic control option
