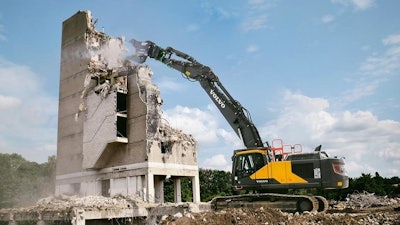

The 38-ton, 308-gross-hp EC380E Straight Boom excavator replaces the traditional boom-and-stick approach with a 23-ft. straight boom and purpose-built arm suited for tough demolition applications.
- Max pin reach of 35 ft. 6 in. with a max pin height of 39 ft. 10 in.
- 44,512-lb. breakout force or 48,333 lbs. with boost
- Includes a heavily reinforced main frame made of heavy-duty plate steel with bolt-head protection, heavy-duty (or eXtreme Duty) undercover protection, a durable belly guard and a full track guard
- Slew ring cover and heavy-duty side doors with screens and louvres offer added protection
- Bolt-on Side Impact Protection system protects superstructure from damage
- Frame-mounted Falling Objects Guard
- Roof window and front one-piece glass made from P5A, which is resistant to high impacts
- Standard LED lights on boom and platform with optional additional lighting for the cabin and counterweight
- Dust suppression system operates in manual or auto mode and features a 7.9-gpm lifting pump that feeds water to four arm-based nozzles
- Reversible cooling fan
