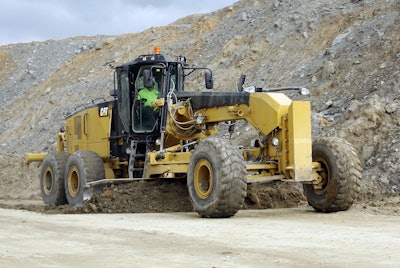

Cat's 18M3 motor grader features an average of 5% greater power in each gear compared to the 16M3 model and a moldboard that is two feet longer than the 16M3.
- 18-ft. moldboard
- Increased blade angle reduces blade loading
- Front axle and transmission guards protect machine components from debris
- Cat C13 ACERT engine with Optimized Variable Horsepower system
- Engine available in three configurations: Tier 4 Final/EU Stage IV; Tier 3/Stage IIIA; and Tier 2/Stage II
- ECO mode limits speed to 1,900 rpm in working gears during light to moderate load applications; automatically disengages in gears 6F-8F and 4R-6R
- Cate direct drive, power shift transmission with eight forward and six reverse gears
- Cat Advanced Productivity Electronic Control Strategy (APECS) system for smooth shifting and extended component life
- Heavy-duty modular trans-axle with standard automatic differential lock
- Hydraulic brakes with large discs and pistons; manual break wear indicator
- Cat load sensing hydraulic system with advanced Proportional Priority Pressure Compensating electrohydraulic valves for precise implement control and continuous matching of hydraulic flow and pressure to power demands
- Full color touch-screen display to monitor machine performance, set operating parameters and access service information
- Advanced-Control joysticks
- Standard rearview camera system
- Standard speed-sensitive steering
- Hardware for Product Link Elite standard
