Caterpillar 14M3 Motor Grader

New grader features a larger engine, increased fuel efficiency and features for enhanced performance, durability and safety

Cat 14M3 Motor Grader3 579b9d1e96b43

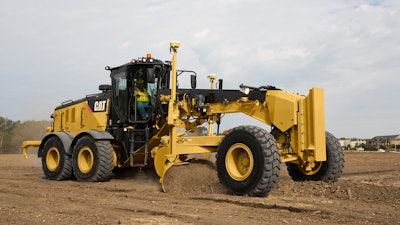

The 57,250-lb. 14M3 motor grader builds on the design of predecessor models with a larger engine, increased fuel efficiency, improved machine balance, enhanced transmission performance, advanced electrohydraulic steering, more powerful telematics and added operator safety/convenience features.

  • 14-ft. standard or optional 16-ft. moldboards with blade-float feature
  • Includes intuitive joystick controllers and selectable blade-lift modes to match blade control to the application
  • Fully scalable, factory integrated Cat GRADE with Cross Slope system, plus Stable Grade and Auto Articulation technologies
  • Advanced Control Joysticks allow the operator to easily manipulate any Cat GRADE or AccuGrade blade control system, while maintaining control of all other machine and implement functions
  • Cat Product Link telematics system allows remote machine monitoring via the secure VisionLink user interface
  • 238- to 285-net-hp C13 ACERT engine with ECO mode and Standard Optimized Variable Horsepower system that closely matches power requirements in all gears
  • 8F/6R powershift transmission features the Advanced Productivity Electronic Control System (APECS) and Shuttle-Shift feature or available Autoshift system
  • Top forward speed of 31.4 mph and top reverse speed of 24.8 mph
  • Load-sensing hydraulic system incorporates advanced electrohydraulic operation and Proportional Priority Pressure-Compensating valves
  • Standard automatic differential locks and hydraulically actuated, oil-cooled disc brakes

Brochure: Caterpillar 14M3 Motor Grader - Key Features

[VIDEO] Caterpillar 14M3 Motor Grader with Stable Blade and Auto Articulation

[Video] Caterpillar 14M3 Motor Grader Product Demo
