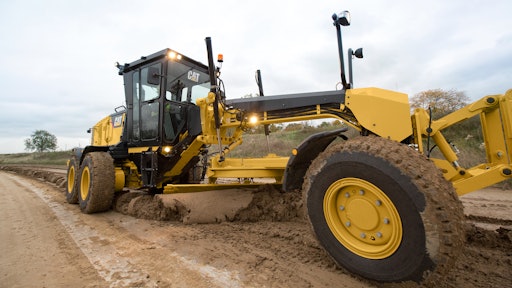

Caterpillar 140 Motor Grader Combines High-tech Features with Conventional Controls

High-production model includes a selection of grade control technologies plus conventional steering wheel/lever controls

Cat 140 Mg Cm20180424 34791 47637
Caterpill 10210679

Designed as a high-production model, the all-new 140 motor grader with 12-ft. moldboard combines a selection of grade control technologies with conventional steering wheel/lever controls, an efficient powertrain, enhanced operator comfort/convenience features and simple, extended-interval serviceability.20181114 155048

  • 250-hp (standard) Cat C9.3 engine with Variable Horsepower Plus (VHP) system regulates power output between 177 to 250 hp
  • Standard ECO mode reduces fuel consumption up to 10% in certain applications
  • 8F/6R direct-drive power-shift transmission
  • All-wheel-drive option provides added performance in rough terrain or poor underfoot conditions
  • VHP system regulates power output between 176 to 270 hp
  • Maximum tightness and accuracy with the top adjust drawbar option saves up to 45% in maintenance costs
  • Scalable Cat GRADE technologies provide grade control options for different application requirements and budgets
  • Optional Stable Blade system automatically slows machine if the grade will be adversely affected by machine bounce
  • Reversing fan option prevents material buildup by the rear door intake screen

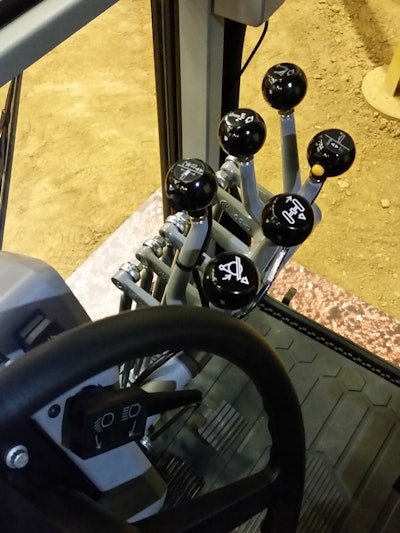

  • Optimum placement of steering wheel and levers reduces operator effort and strain
  • Redesigned, ISO-certified, sound-suppressed and sealed ROPS cabin with high-capacity heating and cooling system
  • Adjustable control console promotes comfort and display screen keeps the operator informed about machine functions while also integrating with Cat Connect Technology information
  • Large, floor-to-ceiling windows ensure all-around visibility
  • Comfort Cab option adds an air suspension seat, rear wiper and defrost fans
  • Standard halogen or optional LED lighting
  • Standard secondary steering system automatically activates should main pump pressure drop
  • Extended maintenance intervals provide significant reductions, saving up to 20% in fluid and filter costs

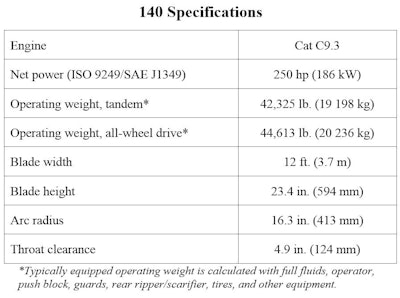

Spec Chart
