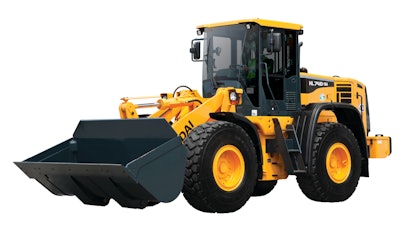

HL740-9A Wheel Loader

Hyundai Hl740 9a Wheel Loader 11188009
Hyundai Logo

The Hyundai HL740-9A wheel loader features many improvements from previous models including a Tier 4 Interim/Stage IIIB 116-hp Cummins QSB6.7 engine which features advanced electronic controls and a self-diagnostic system. The high pressure common rail system and advanced in-cylinder combustion technology improves the power and reduces the fuel consumption of the wheel loader.

  • Fully automatic transmission
  • Improved clutch control and minimized shifting shock when travelling
  • Designed to allow the operator to customize the machine's engine power, automatic transmission, shift time and clutch cut-off activation
  • Three engine power modes: power, standard and economy
  • Four transmission power shift modes: manual, light, normal and heavy
  • Rotary type switches for easy adjustment of engine power modes, transmission power shift modes and clutch cut-off modes
  • 17% wider rounded front windshield than previous models
  • Advanced multimedia functional 5.7-in. touch screen LCD color monitor with adjustable swivel
  • Hi-mate Remote Management System
  • Available in extended reach (XTD) model and tool carrier (TM) model
  • Operating weight: 28,000 to 29,320 lbs.
  • Bucket capacity: 3 cu. yds.
  • Bucket breakout force: 23,880 to 24,800 lbs.
