Vermeer D220x500 S3 Navigator Horizontal Directional Drill

Multiple configurations available for maximum versatility

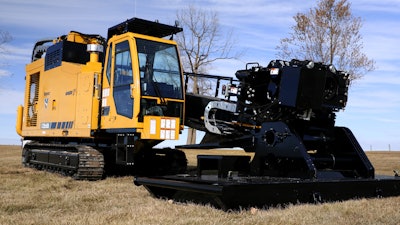

D220x500 S3 Navigator
Vermeer Standard Lockup 2clr Flat

The Vermeer D220x500 S3 Navigator horizontal directional drill is able to be configured for large-diameter water and utility installs in urban areas, as well as challenging pipeline work

  • Delivers up to 54,000 ft.-lbs. (39,828.2 Nm) of torque at a spindle speed of 36 rpm
  • 240,400 lbs. (1069.4 kN) of thrust/pullback
  • Fluid flow rates of up to 350 gpm (1324.9 L/min) if the onboard pump is selected
  • Available with an onboard cab or stand-alone operator cab, and with a 20-foot to 30-foot (6.1-m to 9.1-m) rod rack
  • Contractors can also choose between a rod stager or full-length catwalk, as well as add an optional mud pump, crane or hydraulic scissor lift
  • Built with a 415-hp (310-kW) Cat C13 ACERT Tier 4 Final engine that is convenient to service
  • Runs quiet at 81.2 dB(A)
  • Includes a wireless remote for repositioning
  • Mounted cameras near the drive chuck, vise and rod handling areas provide enhanced operator visibility
