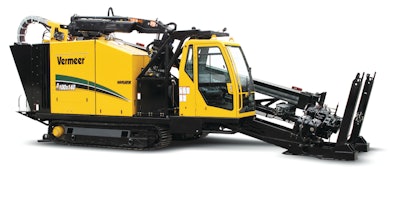

Vermeer's D100x140 Navigator horizontal directional drill is powered by a 275-hp CAT diesel engine that meets EPA interim Tier 4 and EU Stage IIIB emissions certification and produces 100,000 lbs. of thrust/pullback force.
- Rated at a maximum of 14,000 ft.-lb. of rotational torque or max rotational speeds up to 200 rpm
- User interface offers enhanced ability to monitor drill performance during operation
- Two large color digital displays near operator's line of sight down the bore path: first is the integrated multifunction display locator remote; second displays machine performance data
- Large climate-controlled cab than previous models
- Wireline platform and local lockout button suspends drilling operations when activated for enhanced safety
- Two Firestick drill rod options: 15 or 20 ft.
- Stackable rod boxes with a single pin design and auto-lock allow an additional road to be loaded from an upper rod box
- Optional onboard knuckle boom crane
- Drilling fluid pump includes a rated max of 230 gpm at 1,100 psi
- Equipped with steel tracks
