TT Technologies Plastic Pipe Splitting Heads

Capable of splitting and replacing plastic gas service and main lines from 1/2 to 4 in. in diameter

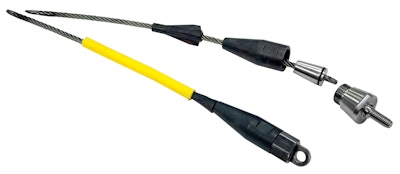

TT Technologies Splitting Head 55d8c3dcc846b
Tt Technologies Logo 10948452

TT Technologie offers a range of plastic pipe splitting heads developed by working directly with gas utilities to create optimum splitting head configurations. During the process, small launch and exit pits are dug at either end of the service or main line being replaced. A winch cable is rodded from the exit pit, through the existing line, to the launch pit. The splitting head configuration is attached and then pulled through the exiting line. An expander forces the split pipe into the surrounding soil.

  • Capable of splitting and replacing plastic gas service and main lines from 1/2 to 4 in. in diameter
  • Hardened heat-treated steel cutting blades available in various designs and sizes to match the type of plastic host pipe and soil conditions
  • Paired with a Mini Grundotugger winch or pulled with a backhoe for service line splitting
  • Used with a larger Grundowinch cable pulling system for main line splitting
