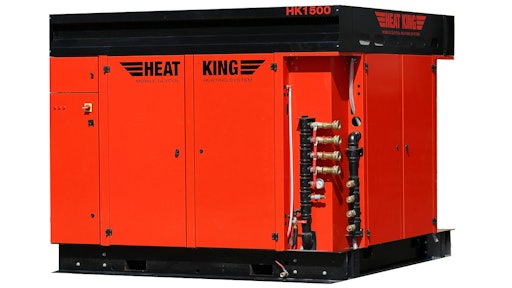

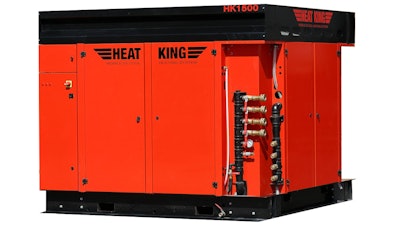

Heat King's HK1500 is a versatile, powerful and user friendly system that can be used to thaw and cure concrete as well as space heating.
- Operates with three phase power supply from grid or generator connection
- Onboard air compressor blows out lines at end of job
- Rugged high pressure custom hoses with self-sealing hydraulic fittings
- Programmable Logic Controller Technology to manage flow and temperatures
- Rugged coil design
- High efficiency burners
- Add a hose reel for concrete curing
- Add a generator for remote use
- Add a trailer for transport
- Add a hose/remote manifold/unit heater package for space heating
- "Plug & Play" connections for easy set up
- Nominal input heating capacity: 1.5 MMBtu/h. (378,000 Kcal/h)
- Diesel fuel consumption: 10.6 gallons per hour
- Max temp target: 200°F
- Minimum ambient temperature: -40°F/ -40°C
- Power Required: 208VAC 3Phase x 40A
- Nominal power consumption: 12.2 KVA 3x208 VAC/60 Hz
- 7 ft. 4 in. length
- 7 ft. 4 in. width
- 6 ft. height
- Weight (full) 4,800 lb.
- System glycol capacity: 245 gal.
