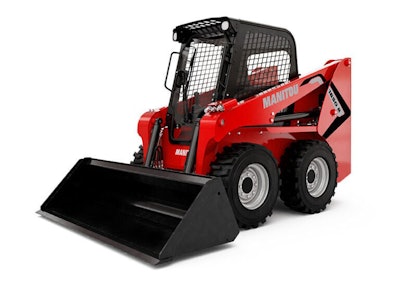

Get a powerful and versatile solution for your farm or construction operation with the 1650 R skid loader. Very compact, this latest generation machine is ideal for your most demanding applications in confined spaces and on uneven or irregular ground. Combining driving comfort, precision of movement, multifunctional use (with several compatible attachments), resistance and ease of maintenance, the 1650 R compact skid loader meets all your requirements for loading / unloading, palletizing, agriculture, transportation heavy loads ...
Skid Steer Loader1650R
Height to Hinge Pin (mm): 119 (3023)Rated Operating Capacity (kg): 1,650 lbs. (748)Net Power (kW): 68.4 hp (51) @ 2500
Performance
The Mustang 1650R rounds up the mid-frame skid loader class with top-notch performance.1650R GrappleNet Power (kW) 68.4 hp (51)Maximum Torque (Nm) 178 ft.-lbs. (241)Rated Operating Capacity (kg) 1,650 lbs. (748)
Operator's Cab
The 1650R features a new, state-of-the-art, fully-adjustable operator's cab.CabinSound reduction material within the cab suppresses outside noise for a quieter operator environment.A front-lifting restraint bar with integrated armrests provides personalized comfort and increased safety.Standard high-back adjustable seat and optional air-ride suspension seat or mechanical suspension seat provide enhanced, all-day comfort.Cab forward design enhances view to the bucket edge. Lowered rear towers improve visibility to the rear of the machine.Hydraloc System - Brakes and hydraulics are applied automatically whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.Creature comforts include automatic dome light, cup holder, 12-volt outlet, storage tray and multiple adjustable air vents.
Controls
Digital color display shows real time fuel consumption, engine RPM's, machine hours, engine diagnostic codes, warning indicators and much more.Three control options include T-Bar, Joystick, and Hand/Foot.All instrumentation is conveniently located in the upper-right and left instrument panels for easy access.Hydraloc system applies brakes whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.EngineThe 1650R is equipped with an all-new Yanmar Tier IV naturally-aspirated diesel engine.
Engine
Make YanmarModel 4TNV98C-NMS2Net Power (kW) @ rpm 69.9 hp (52) @ 2500Maximum Torque (Nm) @ rpm 178 ft.-lbs. (241) @ 1625Displacement (L) 201.4 cu.in. (3.3)
Automatic glow plug heating system provides superior cold-weather starting.After treatment meets all Tier IV requirements through proven technology.HydrailicsThe 1650R has amped-up hydraulic systems which incorporate intuitive design for precise controllability.1650R Boom HookAuxiliary Hydraulics - Standard (L/min) 18.9 gpm (71.4)High-Flow Auxiliary Hydraulics - Option (L/min) 30.1 gpm / (114 L/min)Reservoir Capacity (L) 11 gal. (41.6)
Standard proportional auxiliary hydraulic control gives the operator the ability to adjust attachment speeds with infinitely adjustable flow control.Attachments changes are clean and easy with flat-faced quick couplers that allow for changes by hand instead of tools.Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.
Lift Arm
The 1650R features an all-new low-profile lift arm.1650R Radial Lift Path42% more visibility with new low-profile lift arm.Selectable hydraulic self-leveling option keeps the bucket level throughout the lift cycle.
Serviceability
Excellent service access and quality components pair up to provide durable machines that are easy to maintain.ServiceLarge engine cover is hinged and positioned by gas-springs to assist lifting and holding in place, and allows for easy return to closed/operating position.Swing-out rear door easily opens on hinges, allowing full access to filters and fluid reservoirs, for servicing and maintenance.All-new swing-out cooler provides improved access to the engine bay area.Entire ROPS/FOPS assembly tilts rearward with a gas-spring assist for easy internal access to the pumps, hydraulic valve bank and drive motors.All-new cab safety restraint & pull cord safely holds ROPS/FOPS in raised position.Removable plate for easy cleanout of foot area inside ROPS/FOPSAttachmentsGrader Rake
Grader Rake
From turf and seeding projects to heavy duty landscaping, there is an EDGE rake attachment available to turn your compact loader into a valuable landscaping machine. The EDGE grader rake is ideal attachment to scarify, smooth and level hard-packed soil.Grapple Bucket Industrial Tine
Industrial Tine Grapple
Handling brush, awkward debris, logs and more is made easy with the right grapple. The EDGE industrial tine grapple is designed for moving heavier, hard-to-handle materials such as logs, brush and scrap materials.Pallet Fork Hydraulic
Pallet Forks - Hydraulic
The EDGE pallet forks with hydraulics come in three different styles: rotating, side shift, and sliding tine. All three options feature the walk-through style, allowing easy access in and out of the cab.
Post Pounder
This cost-effective tool can also be used to remove wooden or metal fence posts quickly and easily. It is ideal for use in agricultural applications or for property line fences with solid steel or wood posts.Specifications
Dimensions
A. Overall Operating Height - Fully Raised (mm) 152.6 (3876)B. Height to Hinge Pin - Fully Raised (mm) 118.8 (3018)C. Overall Height to top of ROPS (mm) 76.7 (1948)D. Ground Clearance to Chassis (mm) 6.3 (160)E. Overall Length with 54 Bucket (mm) 122.1 (3101)F. Overall Length without Bucket (mm) 93.9 (2385)G. Wheelbase (mm) 38.9 (988)H. Dump Reach at Full Height (mm) 22.8 (579)I. Rollback at Ground Level 28°J. Dump Angle 38°K. Overall Width - Less Bucket (mm) 63.2 (1605)L. Bucket Width (mm) 61.5 (1562)M. Clearance Circle - Rear (mm) 57.7 (1466)N. Clearance Circle - Front w/o Bucket (mm) 45.4 (1153)O. Clearance Circle - Front w/Bucket (mm) 57.7 (1466)P. Seat to Ground Height (mm) 35.6 (904)Q. Rollback at Full Height 99°R. Dump Height (mm) 93.7 (2380)S. Departure Angle 21°Standard Tire Size 10.00 x 16.5 HD
Engine
Make YanmarModel 4TNV98C-NMS2 Tier IVGross Power (kW) @ 2500 rpm 69.3 hp (51.7)Net Power (kW) @ 2500 rpm 68.4 hp (51)Maximum Torque (Nm) @ 1820 rpm 178 ft.-lbs. (241)Displacement (L) 201.4 cu.in. (3.3)Hydraulics Auxiliary Hydraulics - Standard (L/min) 18.9 gpm (71.4)High-Flow Hydraulics - Optional (L/min) N/AReservoir Capacity (L) 11 gal. (41.6)Electrical Battery (CCA) 12-volt (950)Starter (kW) 12-volt (3.0)Alternator 100-ampCapacities/Weight Rated Operating Capacity (kg) 1650 lbs. (748)With optional counterweight (kg) 1800 lbs. (816.5)Fuel Tank (L) 16.5 gal. (62.5)Travel Speed - Maximum (km/hr) 7.8 mph (12.6)Operating Weight - Approximate (kg) 6122 lbs. (2777)
