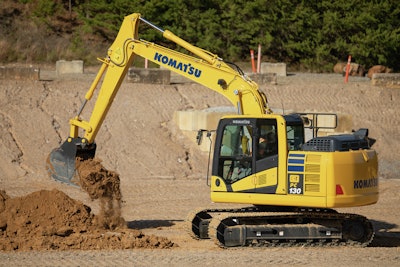

PC130-11
Horsepower 97.2 HP @ 2,050 rpm
Operating weight 28,604 - 28,660 lbs.
Bucket capacity 0.34 - 0.78 yd³
Easily transport your machine with Komatsu's powerful but nimble 97.2 HP conventional tail swing excavator. Thoughtfully designed for customers who want durability, reliability and productivity, the PC130-11 is a smaller, entry-level machine that can handle a wide variety of utility work or small construction jobs - and fit the changing needs of your business as it grows.
Lightweight and powerful
12% less fuel than the previous modeleatures and benefits
Lower fuel consumption
Looking to reduce fuel consumption? This machine uses up to 12% less fuel than the previous model, with six working modes to help you optimize productivity and fuel efficiency.
Lightweight and powerful
Thoughtfully designed to be under 29,000 lbs., the PC130-11 is nimble and can easily handle a wide variety of utility work or small construction jobs, providing a versatile workhorse for you as your business expands and grows.
Optimal hydraulic flow
High arm and bucket digging forces to optimize overall performance.
Steel castings
Durable steel castings in the boom foot, boom nose and arm tip help spread working loads away from high-stress areas providing improved long-term durability.
Auto-idle shut down
Limit unnecessary fuel consumption with Komatsu's auto-idle shut down feature that can be set to automatically stop the engine after a preset amount of idle time
One-piece rear-opening hood
A large one-piece hood, ground-level grease points, engine oil and fuel filters provide quick-and-easy service access.
Specifications for PC130-11
Engine
Model Komatsu SAA4D95LE-7* Type Water-cooled, 4-cycle, direct injection Aspiration Variable flow, turbocharged, air-to-air aftercooled Number of cylinders 4 Bore 3.74 in Stroke 4.53 in Piston displacement 199 in³ Horsepower: SAE J1995 / Gross 97.3 HP ISO 9249 / SAE J1349 / Net 97.2 HP Rated rpm 2,050 Fan at maximum speed /Net 90.9 HP Fan drive method for radiator cooling Mechanical with viscous clutch Governor All-speed control, electronic *EPA Tier 4 Final emissions certified
Hydraulics
Type: HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valve
Number of selectable working modes 6
Main pump: Type Variable capacity piston type Pumps for Boom, arm, bucket, swing, and travel circuits Maximum flow 64 US gpm Hydraulic motors: Travel 2 x piston motor with parking brake Swing 1 x piston motor with swing holding brake Relief valve setting: Implement circuits 5,050 psi Travel circuit 5,050 psi Swing circuits 4,240 psi Pilot circuit 470 psi Maximum Auxiliary Flow at 250 kgf/cm2 3,553 psi* 64 US gpm Hydraulic cylinders/Number of cylinders: bore x stroke x rod diameter Boom / 2 4.1 x 41.5 x 2.76 in Arm / 1 4.3 x 46.3 x 2.95 in Bucket / 1 3.7 x 34.8 x 2.56 in Drives and Brakes Steering control Two levers with pedals Drive method Fully hydrostatic Maximum drawbar pull 27,560 lbf. Gradeability 70%, 35° Maximum travel speed: High 3.4 mph Low 1.8 mph Service brake Hydraulic lock Parking brake Wet, multiple-disc Swing System Driven by Hydraulic motor Swing reduction Planetary gear Swing circle lubrication Grease-bathed Service brake Hydraulic lock Swing lock Wet, multiple-disc brake Swing speed 11.0 rpm Swing torque 21,627 ft.-lbs. Undercarriage Center frame X-leg frame Track frame Box-section Track type Sealed track Track adjuster Hydraulic Number of shoes 43 each side Number of carrier rollers 1 each side Number of track rollers 7 each side Sound Performance Exterior ISO 6395 101 dB(A) Operator ISO 6396 71 dB(A) Coolant & Lubricant Capacity (Refilling) Fuel tank 66 US gal Coolant 4.6 US gal Engine 3.0 US gal Final drive, each side 0.55 US gal Swing drive 0.7 US gal Hydraulic tank 18.2 US gal DEF tank 5.6 US gal Operating Weight (Approximate) Operating weight includes 15 ft. 1 in one-piece boom, 8 ft. 2 in arm, SAE heaped 0.67 yd3 backhoe bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
Grouser Operating Weight Ground Pressure
ISO 16754 20 in Road Liner 28,064 lbs. 5.77 psi 24 in Triple 28,219 lbs. 4.83 psi 28 in Triple 28,660 lbs. 4.20 psi Support you can count on My Komatsu
