Self-tapping screws are designed to create their own threads as they are driven into masonry. Unlike other fasteners, contractors do need to drill a hole or tap threads in a separate step. This pre-drilled hole creates a starting point for the screw and helps guide its threads into place. When driven into masonry, the screw’s thread performs all the cutting, forming threads in the base material up to a maximum of about 1-3/4 in. deep. The actual tapping depth depends on the hardness and abrasiveness of the masonry.
NOTE: Always wear appropriate safety equipment, including eye and ear protection, work gloves, and a dust mask when drilling into masonry.
As the screw cuts, it produces dust. Masonry screws are engineered to clear dust away from the area to prevent binding. For best results, the drilled hole should be slightly deeper than the screw’s embedment depth to provide extra space for dust to settle, ensuring smooth installation.
The hole size is critical to performance and must follow the manufacturer’s specifications. For example,
- 3/16 in. screw → Drill a 5/32 in. hole
- 1/4 in. screw → Drill a 3/16 in. hole
Only use ANSI-standard carbide-tipped masonry bits to achieve the precise tolerances required. Any deviation from the correct hole size can significantly reduce holding strength.

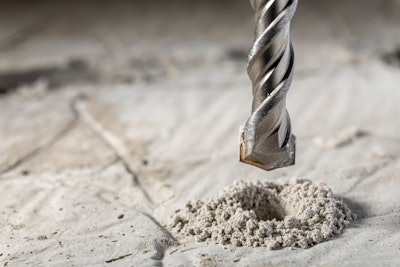

For proper hole shape and size, use an ANSI-standard carbide-tipped bit in a hammer drill set to hammer-and-rotation mode. Once the hole is drilled, clean it thoroughly using a wire brush, compressed air, or a vacuum (or a combination of these). Removing dust and debris is essential to achieving maximum holding power.
Masonry screw dimensions are identified by diameter (either 3/16 in. or 1/4 in.) and length (available from 1-1/4 in. to 6 in.). The availability varies by diameter.
Choosing the right screw size is based on:
- Diameter: Determined by the required holding strength and the hole size in the material being fastened.
- Length: Add the thickness of the material being fastened to the required embedment depth.
- Minimum embedment: 1 in.
- Maximum embedment: 1-3/4 in.
Example: If fastening a 1/2 in. thick fixture with minimum embedment, use a screw at least 1-1/2 in. long.
Masonry screws come in two head styles:
Flat Countersunk Phillips – For flush, smooth finishes where the screw head sits below the surface.
Hex Washer Head – For applications where the screw head remains on top of the surface, offering higher driving torque.
There are two main material types available or self-tapping masonry screws:
- Blue-coated carbon steel – Ideal for dry, indoor applications.
- 410 stainless steel with protective coating – Recommended for outdoor or high-moisture environments.
Troubleshooting
If the screw spins without gripping, the hole might be too large or the base material too soft. You may need to use a longer screw, try a larger diameter screw, or use an expanding concrete anchor.
