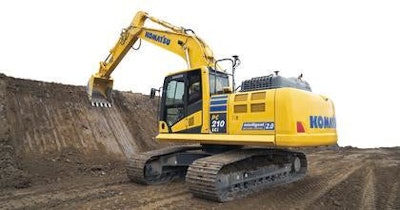

PC210LCi-11
Horsepower 165 HP @ 2,000 rpm
Operating weight 51,397 - 53,882 lbs.
Bucket capacity 0.66 - 1.57 yd³
Make every pass count
Let our second-generation PC210LCi-11 make every pass count. From precise footing work to retentions ponds to utility work, our smallest machine control excavator is a productive and versatile solution. A trusted leader in intelligent machine control design, the updated, factory-integrated system minimizes over-excavation and empowers operators to dig straight to grade, faster with greater accuracy.
Large high-strength steel castings on the boom, arm and bucket link. Closed-center load-sensing hydraulics for precise, fine control. Large displacement high-efficiency pumps provide optimal attachment flow. Large, spacious, quiet cab featuring standard air suspension seat.
Features and benefits
Perform finish grading using only arm input
Your operators can finish grade quickly and accurately with a bucket angle hold control that automatically holds the bucket angle to the design surface during arm operation, enabling operators to perform finish grading using only arm input.
Auto tilt bucket control
Auto tilt bucket control assists the operator in aligning the bucket parallel with the slope, so that finish grading can be accomplished without having to align the machine with the target surface.
Adjusts to the operator's experience level
A fully integrated grade assist automatically traces the target surface to minimize over digging. A built-in facing angle compass ensures the machine is aligned with the target surface.
Auto stop control
To help eliminate potential damage during boom or bucket operation, the machine automatically stops when the bucket edge reaches the design surface.
Minimum distance control
iMC controls the bucket by automatically selecting the point closest to the target surface, which minimizes operator input while providing higher accuracy and grading confidence.
Critical precision for utility applications
For utility customers looking for the utmost precision, the excavator allows your operator to input structure, invert elevations of pipe runs and automatically calculates fall of pipe.
Powerful, advanced engine
Your fleet can be environmentally friendly without sacrificing power. Excavators with iMC 2.0 are equipment with a Tier 4 Final certified Komatsu SAA6D107E-3 engine, which features an integrated diesel particulate filter, hydraulically actuated Komatsu variable geometry turbocharger and selective Ccatalytic reduction system.
Stroke sensing hydraulic cylinder
Stroke sensing hydraulic cylinders provide real-time position that is immediately displayed to the operator. This is an improvement over conventional aftermarket machine guidance (indicate only) systems with tilt sensors that require time to stabilize.
Robust undercarriage
A large counterweight and robust undercarriage components help provide outstanding stability.
Specifications for PC210LCi-11
Engine
Model Komatsu SAA6D107E-3* Type Water-cooled, 4-cycle, direct injection Aspiration Komatsu Variable Geometry Turbocharged, aftercooled, cooled EGR Number of cylinders 6 Bore 4.21 in Stroke 4.88 in Piston displacement 408 in³ Horsepower: ISO 9249 / SAE J1349 - Net 165 HP Fan at maximum speed - Net 159 HP Rated rpm 2,000 rpm Fan drive method for radiator cooling Mechanical with viscous fan clutch Governor All-speed control, electronic *EPA Tier 4 Final emissions certified Hydraulics Type: HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load sensing valves and pressure compensated valves
Number of selectable working modes 6
Main pump: Type Variable displacement piston type Pumps for Boom, arm, bucket, swing, and travel circuits Maximum flow 125.5 US gpm Supply for control circuit Self-reducing valve Hydraulic motors: Travel 2 x axial piston motors with parking brake Swing 1 x axial piston motor with swing holding brake Relief valve setting: Implement circuits 5,400 psi Travel circuit 5,400 psi Swing circuit 4,190 psi Pilot circuit 470 psi Hydraulic cylinders: Number of cylinders Bore x Stroke x Rod Diameter Boom / 2 5.1 x 52.5 x 3.5 in Arm / 1 5.3 x 58.7 x 3.7 in Bucket / 1 4.5 x 44.1 x 3.2 in Drives and Brakes Steering control Two levers with pedals Drive method Hydrostatic Maximum drawbar pull 45,349 lbs. Gradeability 70%, 35° Maximum travel speed: (Auto-Shift) High 3.4 mph Mid 2.5 mph Low 1.9 mph Service brake Hydraulic lock Parking brake Mechanical disc brake Swing System Drive method Hydrostatic Swing reduction Planetary gear Swing circle lubrication Grease-bathed Service brake Hydraulic lock Holding brake/Swing lock Mechanical disc brake Swing speed 12.4 rpm Swing torque 49,907 ft.-lbs. Undercarriage Center frame X-frame Track frame Box-section Seal of track Sealed track Track adjuster Hydraulic Number of shoes 49 each side Number of carrier rollers 2 each side Number of track rollers 9 each side Sound Performance Exterior ISO 6395 100 dB(A) Operator ISO 6396 66 dB(A) Coolant & Lubricant Capacity (Refilling) Fuel tank 105.7 US gal Coolant 8.1 US gal Engine 6.1 US gal Final drive, each side 1.3 US gal Swing drive 1.7 US gal Hydraulic tank 34.9 US gal Hydraulic system 61.8 US gal DEF tank 6.1 US gal Operating Weight (Approximate) Operating weight includes 18 ft. 8 in one-piece boom, 9 ft. 7 in arm, SAE heaped 1.57 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
Triple-Grouser Shoes Operating Weight: Ground Pressure
28 in 50,706 lbs. 5.8 psi 31.5 in 51,588 lbs. 5.2 psi
