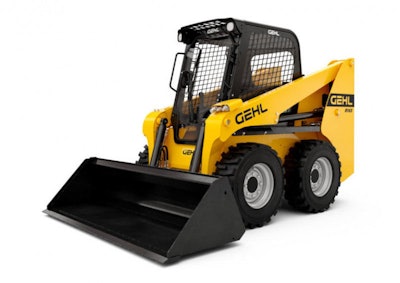

R165 COMPACT LOADERS
When it's time to get a high-performance and versatile solution for your agricultural / construction operations choose the R165. A true crowd favorite. Compact body style with true raw power. This latest generation machine with perfect all-terrain maneuverability is ideal for your most demanding applications in confined spaces and on uneven ground. Combining driving comfort, precision of movement, multifunction use (thanks to endless attachments available below).
CapacitiesRated Operating Capacity1649 lbsRated Operating Capacity with Optional Counterweight1800 lbsUnladen weight6164 lbs
Weight and dimensionsOverall Operating Height - Fully Raised153 inHeight to Hinge Pin – Fully Raised119 inOverall Height to Top of ROPS77 inDump angle at full height38 °Dump height94 inOverall length with bucket122 inDump reach - Full height23 inRollback at ground28 °Seat to ground height36 inWheelbase39 inOverall width less bucket62 inBucket Width61 inGround clearance524 ft 11 inOverall length - Less Bucket94 inDeparture angle21 °Clearance Radius - Front with Bucket74 inClearance Circle - Front without Bucket45 inClearance Circle - Rear58 in
PerformancesTravel Speed with Two-Speed Option - Maximum12 mphTravel speed (unladen)8 mph
WheelsStandard tyres10.00x16.5 HD
EngineEngine brandYanmarEngine model4TNV98C-NMS2V Stage VEngine normStage VGross Power (kW)51.70 kWNet Power (kW)51 kWMax. torque / Engine rotation241 Nm / 2500 rpmBattery12 VStarter (kW)2.30 kW
HydraulicsStandard flow - Auxiliary hydraulics77 l/minHigh-Flow Auxiliary Hydraulics – Option114 l/min
Tank capacitiesFuel tank17 US galReservoir Capacity Hydraulics10 US galDisplacement1 US gal
Noise and vibrationEnvironmental noise (LwA)101 dB(A)Whole-Body Vibration (ISO 2631-1)1.05 m/s²Vibration to whole hand/arm< 1.53 m/s²
