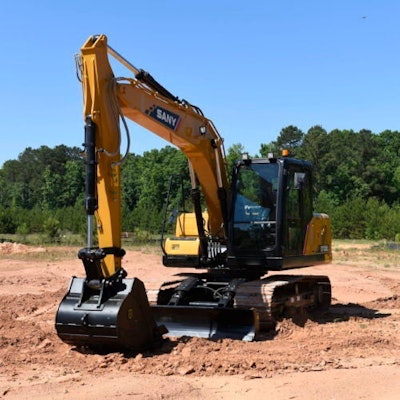

SY135C EXCAVATOR
OPERATING WEIGHT 32,783 LB 14,870 kg
GROSS POWER 103.3 HP 77.0 kW
DIG DEPTH 18' 1 5,500 mm
The SANY SY135C compact excavator brings power and performance to a design that makes all-day work easy on operators. The cab features superior visibility for the driver and is fully enclosed with a powerful AC and heating system for comfortable operation in hot or cold climates. With responsive and intuitive controls, positive flow hydraulics, incredible fuel efficiency and a reliable powertrain, the SY135C is the excavator to take on your toughest jobs.
Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications Optimized positive flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE MODEL SY135C
OVERALL DIMENSIONS
HIDE Boom Length 4600mm 15' 1 Stick (Arm) Length 2500mm 8' 2 Transport Length 7700mm 25' 3 Transport Width 2600mm 8' 6 Transport Height 2815mm 9' 3 Upper Structure Width 2490mm8' 2 Cab Height Blade Height 458mm 18 Track Width (standard shoe) 600mm 24 Track Gauge 1990mm 6' 6 Ground Clearance (minimum) 425mm 17 Tail Swing Radius 2205mm 7' 3 Track Length on Ground 2930mm 9' 7 Track Length 3665mm12' 0
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 14870 kg 32,783 lb Ground Pressure 39.0 kPa 5.7 psi Engine ISUZU 4JJ-FT4 Displacement 3.0 L 183 in3 Gross Power 77.0 kW 103.3 HP
Hydraulics Positive Flow Control with Pilot Control
Main Hydraulic Pump Axial Piston - Variable Displacement
Operating Flow (maximum) 242.0 L/min 63.9 gal/min Operating Pressure (maximum) 34.3 MPa 4975 psi Power Boost Pressure (maximum)
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum) 34.3 MPa 4975 psi Travel Speeds (maximum) 3.5 / 5.5 km/hr 2.2 / 3.4 mph Travel Effort (maximum) 110.0 kN 24,729 lbf Grade Capability 35°
Swing Motor Axial Piston with Swing Brake
Swing Pressure (maximum) 25.0 MPa 3626 psi Swing Speed (maximum) 12 rpm
Undercarriage (standard) Steel Track
Track Shoe Width (standard) 600 mm 24 Track Rollers (per side) 7 Carrier Rollers (per side) 1
WORKING RANGE
HIDE Boom Length 4600 mm 15' 1 Stick (Arm) Length 2500 mm 8' 2 Maximum Digging Height 8645 mm 28' 4 Maximum Dumping Height 6175 mm 20' 3 Maximum Digging Depth 5500 mm 18' 1 Maximum Vertical Wall Digging Depth 4850 mm 15' 11 Maximum Reach at Ground Level 8290 mm 27' 2 Minimum Swing Radius 2500 mm 8' 2
