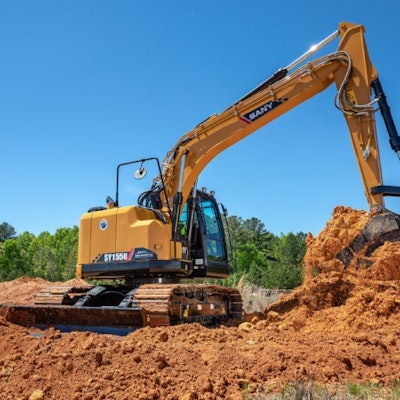

SY155U EXCAVATOR
SANY's SY155U is one of the industry's best compact excavators, built using feedback from experienced operators for maximum comfort and efficiency. Powered by a reliable and efficient Isuzu engine, the SY155U is easy to transport, can be street-ready with the bolt-on rubber pad option, comes with minimal tail swing and delivers high performance all day long on the jobsite.
When equipped with quick coupler, operators can easily reduce the time it takes to change work tools giving convenience and flexibility in the field Easy to transport at a maximum legal load width of 102
Steel track comes standard with the option of bolt-on rubber pads to make your machine street-ready for work on pavement or concrete Minimal tail swing radius allows operation in extremely confined spaces
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE MODEL SY155U
OVERALL DIMENSIONS
HIDE Boom Length 4600 mm 15' 1 Stick (Arm) Length 2500 mm 8' 2 Transport Length 8178 mm 26' 10 Transport Width 2590 mm 8' 6 Transport Height 2820 mm 9' 3 Upper Structure Width 2490 mm 8' 2 Cab Height Blade Height 490 mm 19 Track Width (standard shoe) 600 mm 24 Track Gauge 1990 mm 6' 6 Ground Clearance (minimum) 425 mm 17 Tail Swing Radius 1500 mm 4' 11 Track Length on Ground 2930 mm 9' 7 Track Length 3665 mm 12' 0
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 16,000 kg 35,274 lb Ground Pressure 41.0 kPa 5.9 psi Engine ISUZU AR-4JJ1XASC Displacement 3.0 L 183.0 in3 Gross Power 78.5 kW 105.0 HP
Hydraulics Positive Flow Control with Pilot Control
Main Hydraulic Pump Axial Piston Variable Displacement
Operating Flow (maximum) 252.0 L/min 66.6 gal/min Operating Pressure (maximum) 34.3 MPa 4975 psi Power Boost Pressure (maximum)
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum) 34.3 MPa 4975 psi Travel Speeds (maximum) 3.1 / 5.3 km/hr 1.9/ 3.3 mph Travel Effort (maximum) 114.0 kN 25,628 lbf Grade Capability 35°
Swing Motor Axial Piston with Swing Brake
Swing Pressure (maximum) 25.0 MPa 3626 psi Swing Speed (maximum) 12 RPM
Undercarriage (standard) Steel Track
Track Shoe Width (standard) 600 mm 24 Track Rollers (per side) 7 Carrier Rollers (per side) 1
WORKING RANGE
HIDE Boom Length 4600 mm 15' 1 Stick (Arm) Length 2500 mm 8' 2 Maximum Digging Height 9218 mm 30' 3 Maximum Dumping Height 6756 mm 22' 2 Maximum Digging Depth 5468 mm 17' 11 Maximum Vertical Wall Digging Depth 3796 mm 12' 5 Maximum Reach at Ground Level 8338 mm 27' 4 Minimum Swing Radius 2086 mm 6' 10
